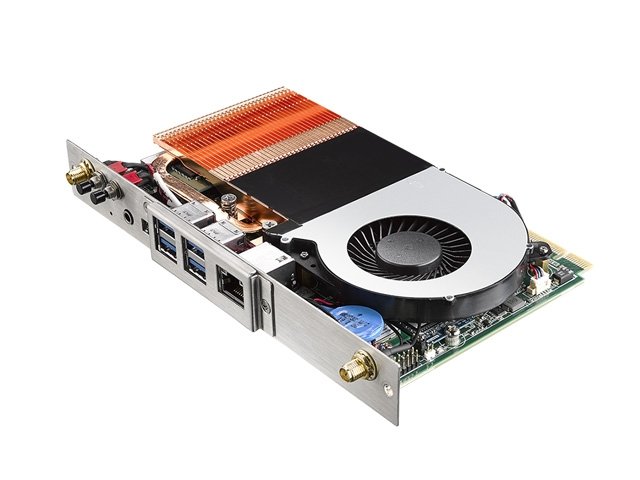

SDM - Celeron Standard, Core-i5 Advanced, Core-i5 Enterprise

SDM Computing Solutions

Processor Intel®
CPU Celeron Standard - 100015585
Core-i5 Advanced - 100015614
Core-i5 Enterprise - 100015586
System Chipset Intel QM370
RAM Celeron Standard - 8GB dual channel
Core-i5 Advanced - 8GB dual channel
Core-i5 Enterprise - 16GB dual channel
Mass Storage Celeron Standard - 128GB M.2 SSD (SATA)
Core-i5 Advanced - 128GB M.2 SSD (SATA)
Core-i5 Enterprise - 256GB M.2 SSD (SATA)
Operating System Windows 10
Graphics (board) Intel® UHD Graphics 630 integrated Graphics controller

Intel® Smart Display Modules

SDM PC support a wide variety of applications such as flight information controllers in airports, media players for retail or corporate signage, menu board play-out systems in restaurants and many more.

Tailor-made solutions can be provided with a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi connectivity.


  • Versatile Performance - Processor with dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing
  • Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software
  • High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters
  • Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232
  • 100% compatibility and enhanced feature-set - in combination with supported NEC large format displays
  • Built for business - the TPM chipset provides enhanced hardware security
  • High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.

Datasheet - Celeron Standard Datasheet - Core i5 Advanced Datasheet - Core i5 Enterprise
