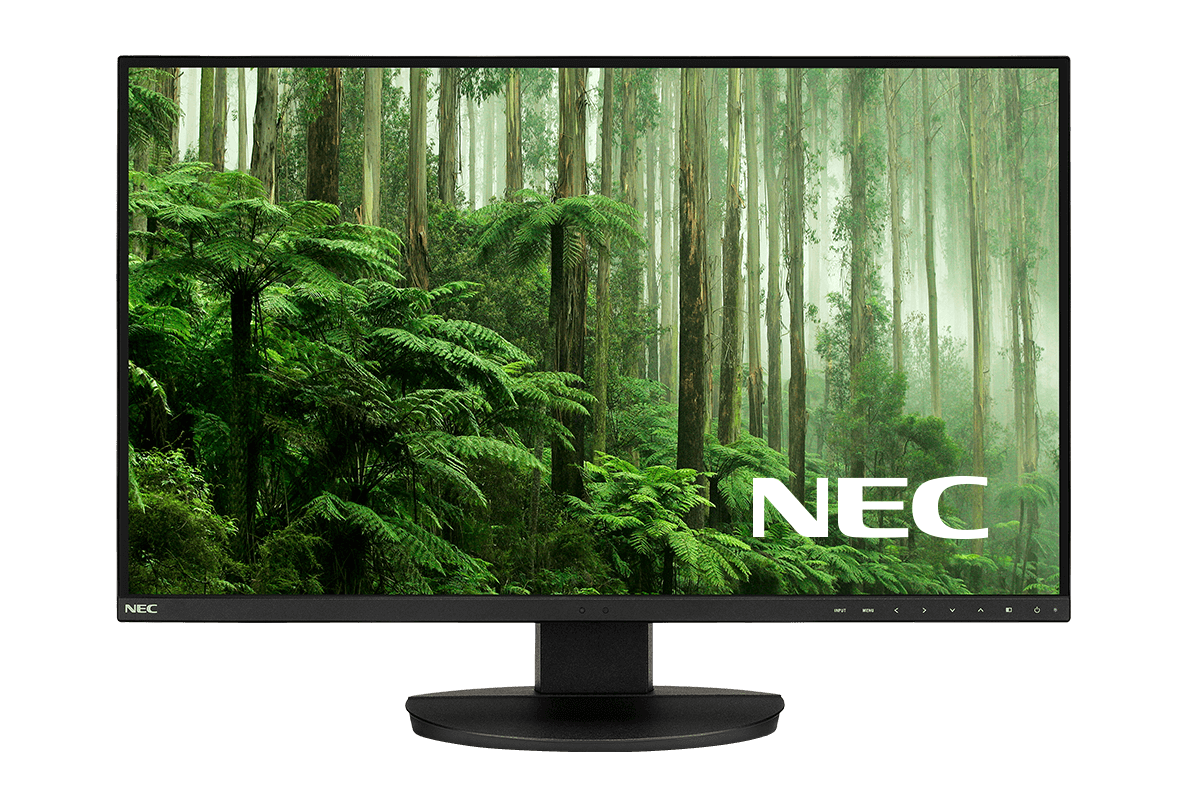

EA Series - 27"

EA Series Desktop Monitor

Panel Technology IPS TFT with W-LED backlight
Viewable Image Size 27"
Aspect Ratio 16:9
Optimum Resolution 3840 x 2160
Brightness [cd/m²] 350
Contrast Ratio (typ.) 1300:1

Outstanding pixel-free visualisation with future-proof professional office productivity

Where highest detail display quality is of the utmost importance, only 4K UHD resolutions can provide the perfect tool for the job. This 27” ultra-narrow bezel display delivers peak performance and visualisation with up to 3840 x 2160 pixels for superior productivity for professionals.

With high attention to user well-being, this display offers outstanding ergonomic features for an individually tailored workspace. Furthermore, with an integrated ambient light sensor, Low Blue Light and Flicker-Free technology, the user can maintain high productivity without risk to eyes. Maintain focus with a decluttered desk; with Type-C connectivity, just a single cable manages video, audio, power, and USB. Excellence in future-proof connectivity ensures investment protection and peace of mind.

This display is perfectly positioned to meet the demanding pixel-free visualisation needs of content creators (photo, video, cinema, and movies), CAD/CAM designers as well as control room and trading floor operators.

Benefits

  • Deliver highest display quality – optimize your workflow by displaying bigger spreadsheets, clearer text, extended data, more lines of code and life-like images thanks to 4K UHD resolutions with up to 3840x2160 pixels.
  • Newest USB Type-C connectivity standard – optimize connectivity and declutter your desk; replace video, audio, power, and USB cabling with just a single cable to connect your notebook/tablet PC with the display.
  • Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye-pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.
  • Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
  • Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions.
  • Ease of multi-display control – manage the settings of up to 8 displays in a multi-monitor configuration via the master display with ControlSync® technology.

Support and Warranty

Product Documents

File TypeSize
NEC EA271U Commercial Display Desktop Monitor - Datasheet AU pdf286.30 KB
NEC EA271U Commercial Display Desktop Monitor - Mechanical Drawing AU pdf6,177.95 KB
NEC EA271U Commercial Display Desktop Monitor - User Manual AU pdf461.15 KB

Product Specifications

DISPLAY EA271U
Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 27 / 68
Aspect Ratio 16:9
Pixel Pitch [mm] 0.155
Brightness [cd/m²] 350
Contrast Ratio (typ.) 1300:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1,073 (10bit)
Response Time [ms] 5
Panel Refresh Rate [Hz] 60
SYNCHRONISATION RATE AND RESOLUTION
Horizontal Frequency [kHz] 31.5 - 135
Vertical Frequency [Hz] 30 - 75
Optimum Resolution 3840 x 2160 at 60 Hz
Supported Resolutions 3840 x 2160;
2560 x 1440;
1920 x 1440;
1920 x 1080;
1600 x 1200;
1280 x 1024;
1152 x 864;
1024 x 768;
832 x 624;
800 x 600;
640 x 480;
CONNECTIVITY
Digital 1 x DisplayPort; 1 x USB Type C (60 W); 2 x HDMI; USB ver 3.1 (3 down / 1 up)
Analog 1 x mini D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W] 150 (max.); 30 (Eco Mode 1); 38 (Eco Mode 2); 38 (shipping)
Power Savings Mode [W] 0.33
Power Supply 1.6 A/0.75 A; 100-240 V; integrated power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
ERGONOMICS
Height adjustable Stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Tilt / Swivel [°] -170 to +170
Screen Rotate [°] -90 to 90 (landscape to portrait mode)
MECHANICAL
Bezel Width [mm] 1 (left and right); 1 (top)
Dimensions (W x H x D) [mm] 361.9 x 628.6 - 652.1 x 250 (Portrait mode); 611.8 x 378 - 528 x 250 (Landscape mode)
Weight [kg] With stand: 9.5; Without stand: 6.1
VESA Mounting [mm] 100 x 100
ADDITIONAL FEATURES
Special Characteristics Advanced NTAA; Ambient light sensor for optimized brightness levels; ControlSync®; Customize Setting; DDC/CI compatible; DICOM simulation; EcoModes; ErgoDesign®: Height adjustable stand (150 mm) with 90° Pivot features; Human Sensor; LED Backlight Technology; Picture-by-Picture; Quick release Stand and Handle; Versatile and easy installation (VESA standard) with NaViSet and NaViKey
Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management Yes
Kensington security slot Yes
Plug and Play EDID Standard; VESA DDC2Bi; VESA DDCi
Audio 1W + 1W (De-activateable); Headphone Jack
Adjust Functions DV Mode; EcoMode; Human Sensing; Intelligent Power Management; sRGB
Shipping Content Control Sync Cable; Display; DisplayPort cable; Power Cable; Set-up Manual; USB Cable
Safety and Ergonomics CE; EnergyStar 6.0; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Warranty 3 years warranty incl. backlight
GREEN FEATURES
Energy Efficiency Ambient light sensor; Carbon Footprint Meter / Carbon Savings Meter; ECOMode; Energy consumption: 22 kWh/1000 h; Energy efficiency class: F; Human sensor; LED backlight technology
Ecological Materials Minimal use of harmful material
Ecological Standards Energy Star 8.0; ErP compliant; RoHS compliant; TCO 8.0
