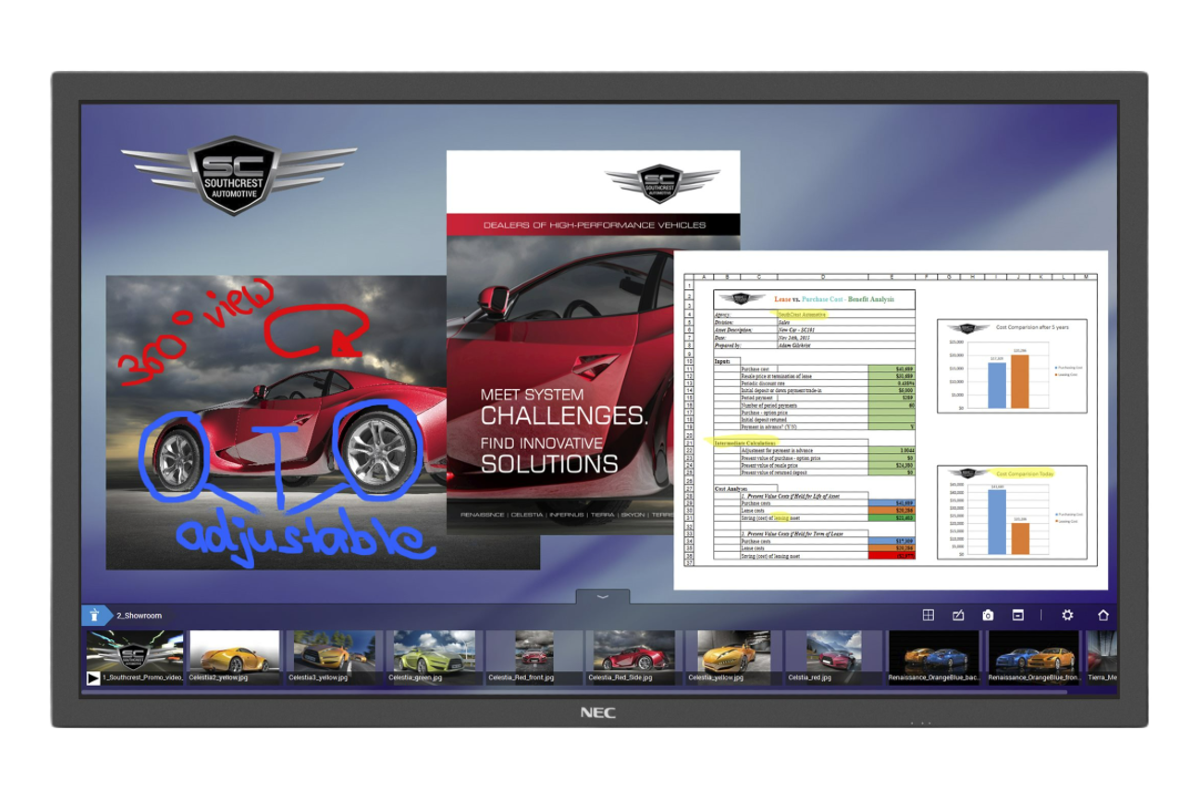

Give your meeting room a bright new touch
Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership, with long life-times.
The ShadowSenseTM Technology gives you the freedom to throw open the blinds and let the daylight enrich your meeting – even in direct sunlight the precise touch interface functions perfectly without ghost touches. Meanwhile, the anti-glare coating minimizes disturbing reflections and helps to eliminate annoying fingerprints on the touch surface. The design of the touch frame brings a modern styling to ShadowSenseTM Touchscreens, whilst the precision pen the user an even better writing experience. Add the Mosaic Canvas software for whiteboarding and sketching capability to deliver the perfect interactive meeting solution. When adding an OPS Slot-in PC, an NEC Soundbar and Huddly Go wide screen camera, your collaborative meeting solution is ready to boost creativity and efficiency in your meeting rooms.
All NEC SST touch displays come with an NEC SST Pen and Eraser Kit.
Benefits
- Avoid Touch Frustration – satisfy users with the highest touch point accuracy, filtering out misleading touch-sizes and avoiding ghost touches even in high ambient light operation.
- Resistive and Endurance Design – the protection glass resists vandalism and provides 24/7 customer usage.
- Seamless Touch Integration – work hand-in-hand with multi-touch applications while using the 10 touch points of ShadowSense™ touch technology in real-time collaboration.
- Simple Plug & Play – easy set-up without the need to install any drivers on the host PC for all major operating systems.
- Superb readability in bright light environments – crisp playback of content thanks to anti-reflective screen surface that delivers clearly visible messages even under varying and demanding ambient conditions.
- Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
- Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
Product Documents
| File | Type | Size |
|---|---|---|
| NEC C750Q-SST C Series ShadowSense Touch Display Datasheet AU | 335.59 KB |
Product Specifications
| DISPLAY | C750Q-SST |
| Panel Technology | IPS with Edge LED backlights |
| Active Screen Area (W x H) [mm] | 1,649.7 x 927.9 |
| Screen Size [inch/cm] | 75 / 189 |
| Brightness [cd/m²] | 350, 250 (shipment setting) |
| Contrast Ratio (typ.) | 1200:1 |
| Viewing Angle [°] | 178 / 178 (at contrast ratio > 10:1) |
| Colour Depth [bn] | 1.073 (10bit) |
| Response Time (typ.) [ms] | 8 (grey-to-grey) |
| Haze Level [%] | Pro (28) |
| Supported Orientation | Landscape; Portrait |
| SYNCHRONISATION RATE | |
| Horizontal Frequency [kHz] | 31.5 - 91.1 |
| Vertical Frequency [Hz] | 24 - 85 |
| RESOLUTION | |
| Native Resolution | 3840 x 2160 |
| Supported on DisplayPort and HDMI | 4096 x 2160; |
| 3840 x 2160; | |
| 1920 x 2160; | |
| 1920 x 1080; | |
| CONNECTIVITY | |
| Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
| Input Control | 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232 |
| Input Data | 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3.5 mm jack |
| Input Detect | Custom; First; Last |
| OPEN MODULAR INTELLIGENCE | |
| OPS Slot | Slot Technology: Open pluggable specification (NEC / Intel OPS standard) |
| OPS Max. Current / Power Consumption [A / W] | 4.7 / 75 |
| SENSORS | |
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Human Sensor | Optional, external, 4-5m range, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| ELECTRICAL | |
| Power Consumption Eco/max. [W] | 195 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| MECHANICAL | |
| Dimensions (W x H x D) [mm] | 1,740 x 1024 x 93 |
| Weight [kg] | 79 |
| Bezel Width [mm] | 32 (left and right); 32 (top and bottom) |
| VESA Mounting [mm] | 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8 |
| Ingress Protection | IP5X (front); IP2X (back) |
| TOUCH | |
| Touch Technology | ShadowSense™ Touch |
| Number of Touches | Real multi-touch up to 10 touches |
| Response Time [ms] | 6 to 8 |
| Touch Active Area (W x H) [mm] | 1650 x 928 |
| Touch Method | Finger; Gloves; Stylus (≥ 6 mm) |
| Supported Operating System | Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X |
| Data Interface | USB-HID |
| Accuracy [mm] | < 1.5 |
| Touch Resolution | 12-bit (4096 x 4096) |
| Ambient Light Rejection | Up to full sunlight (approx. 100000 lux) |
| MEDIAPLAYER | |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
| AVAILABLE OPTIONS | |
| Accessories | Feet (ST-801) |
| OPS Slot | HDBaseT receiver; Intel® Atom, Celeron and Core CPUs |
| GREEN FEATURES | |
| Energy Efficiency | Ambient light sensor; Carbon savings meter; Energy consumption: 165 kWh/1000 h; Energy efficiency class: G; Local dimming |
| ADDITIONAL FEATURES | |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics | CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
| Warranty | 3 years warranty incl. backlight; additional services available |
| Operating Hours | 24/7 |
