Enter a world of interactive whiteboarding
Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.
For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.
Benefits
- Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities.
- Multi-Touch – true multi-touch support with up to 20 simultaneous touch points.
- Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints.
- Simple operation – with easy front access to USB ports and controls for major functionalities.
- Ease of Use – enhance the display with an optional “Windows based” Slot-in-PC using the integrated Ultra High Resolution OPS option slot, thereby simplifying installations and reducing the points of failure.
CB651Q
Product Documents
Product Specifications
DISPLAY | CB651Q |
Panel Technology | IPS with Direct LED backlights |
Active Screen Area (W x H) [mm] | 1,428.5 x 803.5 |
Screen Size [inch/cm] | 65 / 163.9 |
Brightness [cd/m²] | 350, 300 (shipment setting) |
Contrast Ratio (typ.) | 1200:1 |
Viewing Angle [°] | 178 / 178 (at contrast ratio > 10:1) |
Colour Depth [bn] | 1.073 (10bit) |
Response Time (typ.) [ms] | 9 (grey-to-grey) |
Haze Level [%] | 3 |
Supported Orientation | Landscape |
SYNCHRONISATION RATE | |
Horizontal Frequency [kHz] | 26 - 135 |
Vertical Frequency [Hz] | 23 - 86 |
RESOLUTION | |
Native Resolution | 3840 x 2160 |
Supported on HDMI | 4096 x 2016 (24 Hz); |
3840 x 2160 (60 Hz) | |
1920 x 1080; | |
800 x 600; | |
CONNECTIVITY | |
Input Video Analogue | 1 x VGA |
Input Video Digital | 3 x HDMI |
Input Audio Analogue | 1 x 3,5 mm jack |
Input Audio Digital | 3 x HDMI |
Input Control | 1 x LAN 100Mbit; 1 x RS232 |
Input Data | 2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream) |
Output Audio Analogue | 1 x 3,5 mm jack |
Output Control | 1 x LAN 100Mbit |
OPEN MODULAR INTELLIGENCE | |
OPS Slot | Slot Technology: Open pluggable specification (NEC / Intel OPS standard) |
OPS Max. Current / Power Consumption [A / W] | 35 / 63 |
ELECTRICAL | |
Power Consumption Eco/max. [W] | 160 Eco (shipment setting), 400 |
Power Savings Mode [W] | < 0.5 (ECO Standby); < 2 (Networked Standby) |
ENVIRONMENTAL CONDITIONS | |
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 10 to 90 |
MECHANICAL | |
Dimensions (W x H x D) [mm] | Without stand: 1,488.4 x 896.8 x 87.5 |
Weight [kg] | Without stand: 39.2 |
Bezel Width [mm] | 18 (left, right and top); 45 (bottom) |

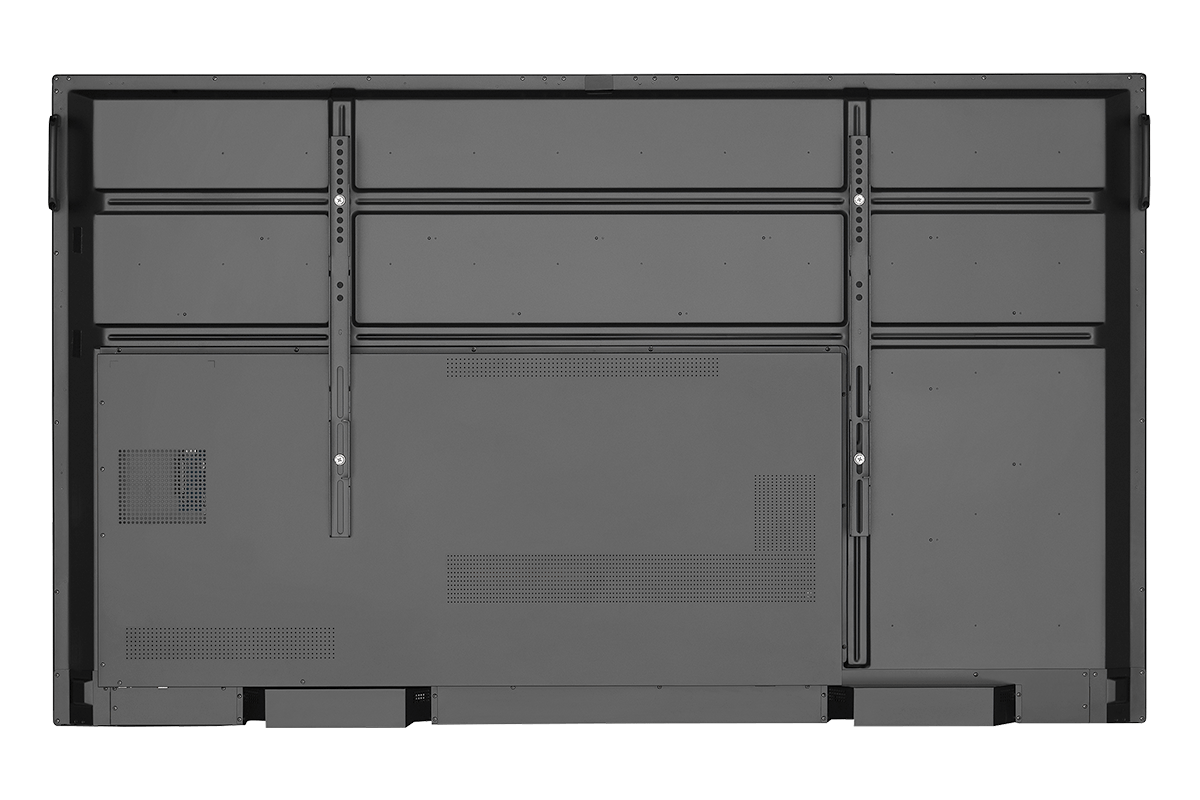

VESA Mounting [mm] | 4 holes; 800 x 400 (FDMI); M8 |
GLASS | |
Thickness [mm] | 4 |
Type | Thermal-tempered, anti-glare coating |
Light Transmission [%] | 88 (+/- 1 %) |
TOUCH | |
Touch Technology | Infrared Touch |
Number of Touches | Real multi-touch up to 20 touches |
Response Time [ms] | ≤ 15 |
Touch Method | Finger; Gloves; Stylus (≥ 6 mm) |
Supported Operating System | Android; Linux; Mac OS; Windows |
Data Interface | USB-HID |
Touch Resolution | 32767 x 32767 |
Embedded Computing | |
Built-in Applications | File Manager; Input Select; Setting; Web Browser; Whiteboard - Mosaic Canvas; Wireless Presentatiom - Mosaic Connect |
Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling |
Supported File Storage / File System | MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32 |
AVAILABLE OPTIONS | |
Accessories | NP05LM4 Wireless LAN Module |
OPS Slot | Intel® Atom, Celeron and Core CPUs; |
GREEN FEATURES | |
Energy Efficiency | Energy Efficiency Class: B |
ADDITIONAL FEATURES | |
Special Characteristics | AMX NetLinx Support; Crestron RoomView Support; DICOM Simulation; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler |
Colour Versions | Black Front Bezel, Black Back Cabinet |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL |
Audio | Integrated Speakers (2 x 12 W) |
Shipping Content | 3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount |
Warranty | 3 years warranty incl. backlight |
Operating Hours | 12/7 |
CB751Q
Product Documents
Product Specifications
DISPLAY | CB751Q |
Panel Technology | IPS with Direct LED backlights |
Active Screen Area (W x H) [mm] | 1,649.7 x 927.9 |
Screen Size [inch/cm] | 75 / 189.3 |
Brightness [cd/m²] | 350, 300 (shipment setting) |
Contrast Ratio (typ.) | 1200:1 |
Viewing Angle [°] | 178 / 178 (at contrast ratio > 10:1) |
Colour Depth [bn] | 1.073 (10bit) |
Response Time (typ.) [ms] | 8 (grey-to-grey) |
Haze Level [%] | 3 |
Supported Orientation | Landscape |
SYNCHRONISATION RATE | |
Horizontal Frequency [kHz] | 26 - 135 |
Vertical Frequency [Hz] | 23 - 86 |
RESOLUTION | |
Native Resolution | 3840 x 2160 |
Supported on HDMI | 4096 x 2016 (24 Hz); |
3840 x 2160 (60 Hz) | |
1920 x 1080; | |
800 x 600; | |
CONNECTIVITY | |
Input Video Analogue | 1 x VGA |
Input Video Digital | 3 x HDMI |
Input Audio Analogue | 1 x 3,5 mm jack |
Input Audio Digital | 3 x HDMI |
Input Control | 1 x LAN 100Mbit; 1 x RS232 |
Input Data | 2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream) |
Output Audio Analogue | 1 x 3,5 mm jack |
Output Control | 1 x LAN 100Mbit |
OPEN MODULAR INTELLIGENCE | |
OPS Slot | Slot Technology: Open pluggable specification (NEC / Intel OPS standard) |
OPS Max. Current / Power Consumption [A / W] | 35 / 63 |
ELECTRICAL | |
Power Consumption Eco/max. [W] | 160 Eco (shipment setting), 400 |
Power Savings Mode [W] | < 0.5 (ECO Standby); < 2 (Networked Standby) |
ENVIRONMENTAL CONDITIONS | |
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 10 to 90 |
MECHANICAL | |
Dimensions (W x H x D) [mm] | Without stand: 1,709.4 x 1,020 x 86.8 |
Weight [kg] | Without stand: 52.6 |
Bezel Width [mm] | 18 (left, right and top); 45 (bottom) |
VESA Mounting [mm] | 4 holes; 800 x 400 (FDMI); M8 |
GLASS | |
Thickness [mm] | 4 |
Type | Thermal-tempered, anti-glare coating |
Light Transmission [%] | 88 (+/- 1 %) |
TOUCH | |
Touch Technology | Infrared Touch |
Number of Touches | Real multi-touch up to 20 touches |
Response Time [ms] | ≤ 15 |
Touch Method | Finger; Gloves; Stylus (≥ 6 mm) |
Supported Operating System | Android; Linux; Mac OS; Windows |
Data Interface | USB-HID |
Touch Resolution | 32767 x 32767 |
Embedded Computing | |
Built-in Applications | File Manager; Input Select; Setting; Web Browser; Whiteboard - Mosaic Canvas; Wireless Presentatiom - Mosaic Connect |
Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling |
Supported File Storage / File System | MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32 |
AVAILABLE OPTIONS | |
Accessories | NP05LM4 Wireless LAN Module |
OPS Slot | Intel® Atom, Celeron and Core CPUs; |
GREEN FEATURES | |
Energy Efficiency | Energy Efficiency Class: B |
ADDITIONAL FEATURES | |
Special Characteristics | AMX NetLinx Support; Crestron RoomView Support; DICOM Simulation; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler |
Colour Versions | Black Front Bezel, Black Back Cabinet |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL |
Audio | Integrated Speakers (2 x 12 W) |
Shipping Content | 3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount |
Warranty | 3 years warranty incl. backlight |
Operating Hours | 12/7 |
CB861Q
Product Documents
Product Specifications
DISPLAY | CB861Q |
Panel Technology | IPS with Direct LED backlights |
Active Screen Area (W x H) [mm] | 1,895 x 1,066 |
Screen Size [inch/cm] | 86 / 217.4 |
Brightness [cd/m²] | 350, 300 (shipment setting) |
Contrast Ratio (typ.) | 1200:1 |
Viewing Angle [°] | 178 / 178 (at contrast ratio > 10:1) |
Colour Depth [bn] | 1.073 (10bit) |
Response Time (typ.) [ms] | 8 (grey-to-grey) |
Haze Level [%] | 3 |
Supported Orientation | Landscape |
SYNCHRONISATION RATE | |
Horizontal Frequency [kHz] | 26 - 135 |
Vertical Frequency [Hz] | 23 - 86 |
RESOLUTION | |
Native Resolution | 3840 x 2160 |
Supported on HDMI | 4096 x 2016 (24 Hz); |
3840 x 2160 (60 Hz) | |
1920 x 1080; | |
800 x 600; | |
CONNECTIVITY | |
Input Video Analogue | 1 x VGA |
Input Video Digital | 3 x HDMI |
Input Audio Analogue | 1 x 3,5 mm jack |
Input Audio Digital | 3 x HDMI |
Input Control | 1 x LAN 100Mbit; 1 x RS232 |
Input Data | 2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream) |
Output Audio Analogue | 1 x 3,5 mm jack |
Output Control | 1 x LAN 100Mbit |
OPEN MODULAR INTELLIGENCE | |
OPS Slot | Slot Technology: Open pluggable specification (NEC / Intel OPS standard) |
OPS Max. Current / Power Consumption [A / W] | 35 / 63 |
ELECTRICAL | |
Power Consumption Eco/max. [W] | 160 Eco (shipment setting), 400 |
Power Savings Mode [W] | < 0.5 (ECO Standby); < 2 (Networked Standby) |
ENVIRONMENTAL CONDITIONS | |
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 10 to 90 |
MECHANICAL | |
Dimensions (W x H x D) [mm] | Without stand: 1,957.1 x 1,159.8 x 86.8 |
Weight [kg] | Without stand: 67.3 |
Bezel Width [mm] | 18 (left, right and top); 45 (bottom) |
VESA Mounting [mm] | 4 holes; 800 x 600 (FDMI); M8 |
GLASS | |
Thickness [mm] | 4 |
Type | Thermal-tempered, anti-glare coating |
Light Transmission [%] | 88 (+/- 1 %) |
TOUCH | |
Touch Technology | Infrared Touch |
Number of Touches | Real multi-touch up to 20 touches |
Response Time [ms] | ≤ 15 |
Touch Method | Finger; Gloves; Stylus (≥ 6 mm) |
Supported Operating System | Android; Linux; Mac OS; Windows |
Data Interface | USB-HID |
Touch Resolution | 32767 x 32767 |
Embedded Computing | |
Built-in Applications | File Manager; Input Select; Setting; Web Browser; Whiteboard - Mosaic Canvas; Wireless Presentatiom - Mosaic Connect |
Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling |
Supported File Storage / File System | MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32 |
AVAILABLE OPTIONS | |
Accessories | NP05LM4 Wireless LAN Module |
OPS Slot | Intel® Atom, Celeron and Core CPUs; |
GREEN FEATURES | |
Energy Efficiency | Energy Efficiency Class: B |
ADDITIONAL FEATURES | |
Special Characteristics | AMX NetLinx Support; Crestron RoomView Support; DICOM Simulation; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler |
Colour Versions | Black Front Bezel, Black Back Cabinet |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL |
Audio | Integrated Speakers (2 x 12 W) |
Shipping Content | 3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount |
Warranty | 3 years warranty incl. backlight |
Operating Hours | 12/7 |
