BT Series - 42" Stretch Display

Commercial Large Format Displays

Panel Technology VA with Direct LED backlights
Viewable Image Size 42"
Orientation Landscape; Portrait
Operating Hours 24/7
Aspect Ratio 16:4
Native Resolution 1920 x 480
Brightness [cd/m²] 700
Contrast Ratio (typ.) 4000:1
Haze Level [%] Pro (44)

Where space is limited but not your message

Delivering space efficient visualisation for constricted environments such as corridors and retail shelves, this 42” bartype display offers a distinctive ultra-wide 16:4 screen ratio. High adaptability extends to both landscape and portrait orientation ideal for space-limited areas, yet content creation remains easy and effortless. Content is crisp and clear with compelling readability even in bright ambient light conditions with high brightness levels of 700 cd/m² combined with an anti-glare surface. Its modern, slim design forms an elegant digital surface which perfectly complements the surrounding architecture and integrates seamlessly into any environment.

The 42” MultiSync® BT421 is the super wide choice for space efficient digital signage in retail environments, transportation hubs, quick service restaurants and all other public areas where space is limited.


  • Space efficient display solution – the ultra-wide screen ratio of 16:4 with a display height of just 28.9 cm allows installation within constricted spaces, providing crisp and eye-friendly visualisation.
  • Robust and reliable – sealed to prohibit dust ingress, long term reliable operation is maintained within wide temperature range of 0-50°C.
  • Easy content adaption – the integrated trim function enables 16:9 content to be used whilst actively displaying the upper or lower area for display of native 1920 x 480 content.

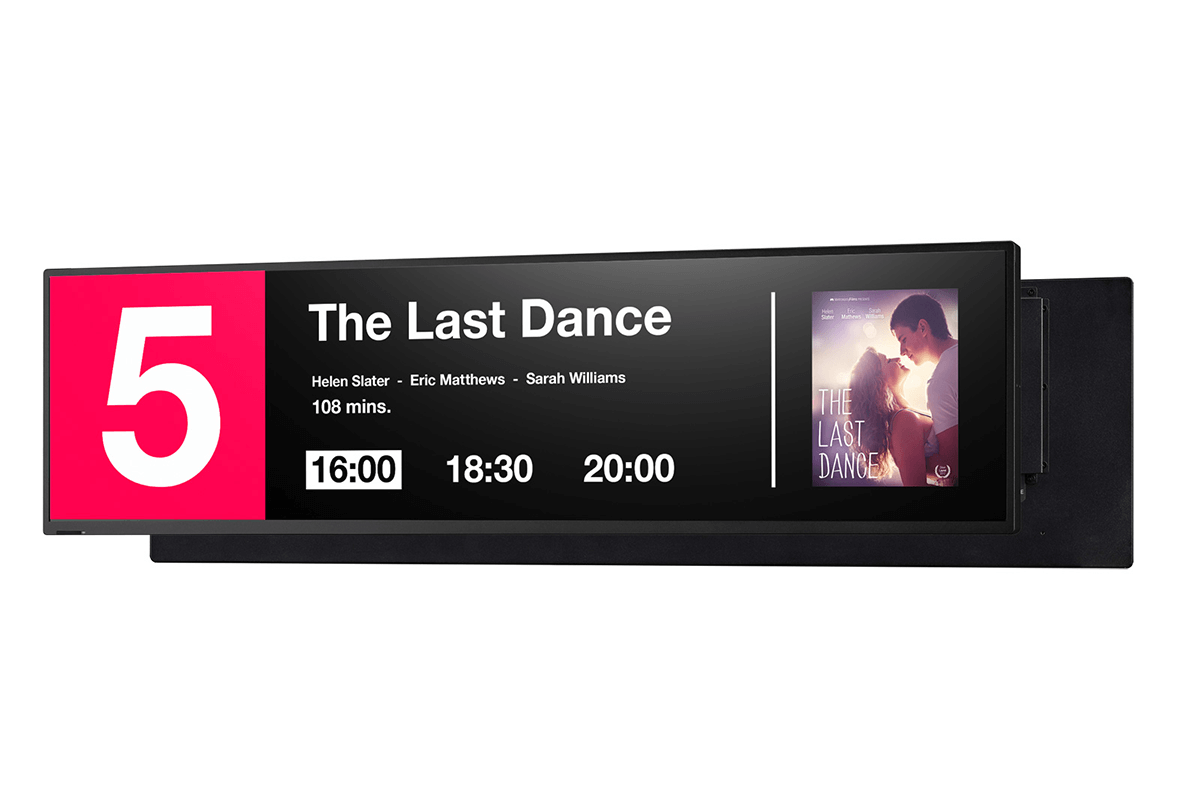

  • Cost efficient media playback flexibility – divide a single Full HD content into two separate contents via daisy chaining for back to back installations, needing only one source to feed two screens for cost saving benefits.
  • Superb readability in bright light environments – crisp playback of content thanks to high brightness output of 700 cd/m² and anti-reflective screen surface delivers clearly visible messages even under varying and demanding ambient conditions.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

Support and Warranty

Product Specifications

Panel Technology VA with Direct LED backlights
Active Screen Area (W x H) [mm] 1,039.7 x 259.9
Screen Size [inch/cm] 42 / 107.2
Aspect Ratio 16:4
Pixel Pitch [mm] 0.542
Brightness [cd/m²] 700
Contrast Ratio (typ.) 4000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1,073 (10bit)
Response Time (typ.) [ms] 8 (grey-to-grey)
Haze Level [%] Pro (44)
TNi [°C] 110
Supported Orientation Landscape; Portrait
Native Resolution 1920 x 480
Supported Resolutions 1920 x 1200;
1920 x 1080;
1920 x 960;
1920 x 480;
1680 x 1050;
1600 x 1200;
1440 x 900;
1400 x 1050;
1366 x 768;
1360 x 768;
1280 x 1024;
1280 x 800;
1280 x 768;
1280 x 720;
1024 x 768;
800 x 600;
640 x 480
Input Video Digital 2 x DVI-D (with HDCP)
Input Control LAN 100Mbit; RS232
Output Video Digital 1 x DVI-D
Power Consumption Eco/max. [W] 50 shipping; 75 (max.)
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Operating Temperature [°C] +0 to +50
Operating Humidity [%] 20 to 90
Dimensions (W x H x D) [mm] 1,059.9 x 288.9 x 64.7
Weight [kg] 9.3
Bezel Width [mm] 14.7 (bottom); 7.9 (left and right); 9.8 (top)

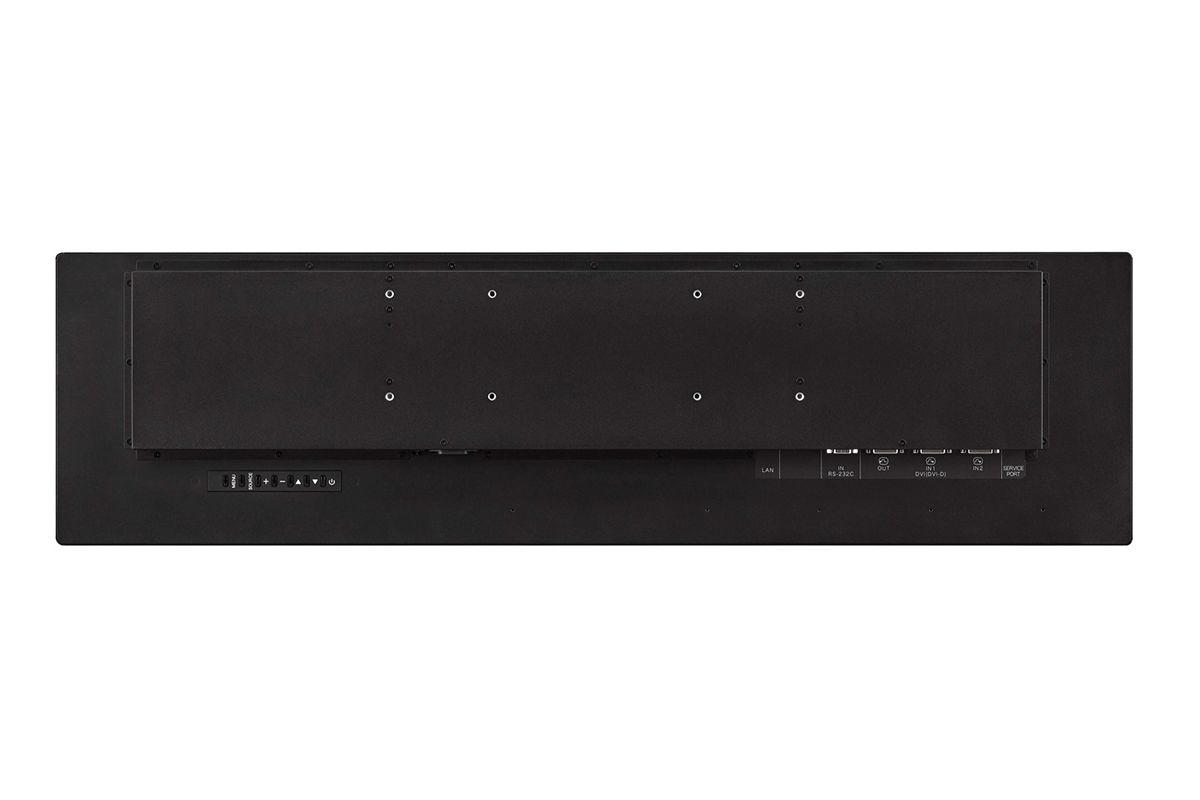

VESA Mounting [mm] 200 x 100 (FDMI); 4 holes; 400 x 100 (FDMI); M6
Accessories Ceiling Mount (PDC BT S(single sided); PDC BT D (dual sided); PD Pole S, PD Pole M, PD Pole L, PD Pole XL); Wall mount (PDW BT L)
Energy Efficiency Energy efficiency class: C
Special Characteristics NaViSet Administrator 2; Trim Function
Safety and Ergonomics CE; REACH; RoHS; SASO
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Operating Hours 24/7
