Nothing less than magnificent
For premium large surface visualization, NEC’s fine pitch LED FA Series Bundles provide standard resolution, direct view LED screens for applications in meeting spaces and exclusive signage. With a depth of just 5cm, plus complete internal cabling, the FA series presents a sleek profile for a bezel-free viewing experience. With excellent viewing angles, consistent vibrant colours and superb brightness; the FA Series delivers content that gets noticed.
Native HD, FHD and UHD resolutions are achieved through configuration of multiple 16:9 cabinets which are bundled with a power bar, framing, mounting and controller. With pixel pitches starting from 1.2mm at 110’’ screen size in FHD resolution, optimum viewing distances from 2m are achieved. Designed with high quality components and maintenance access from the front, the FA Series provides a display solution with longevity and good return on investment. The prime solution for boardrooms, auditoria, luxury retail environments and control rooms.
Features
- Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.

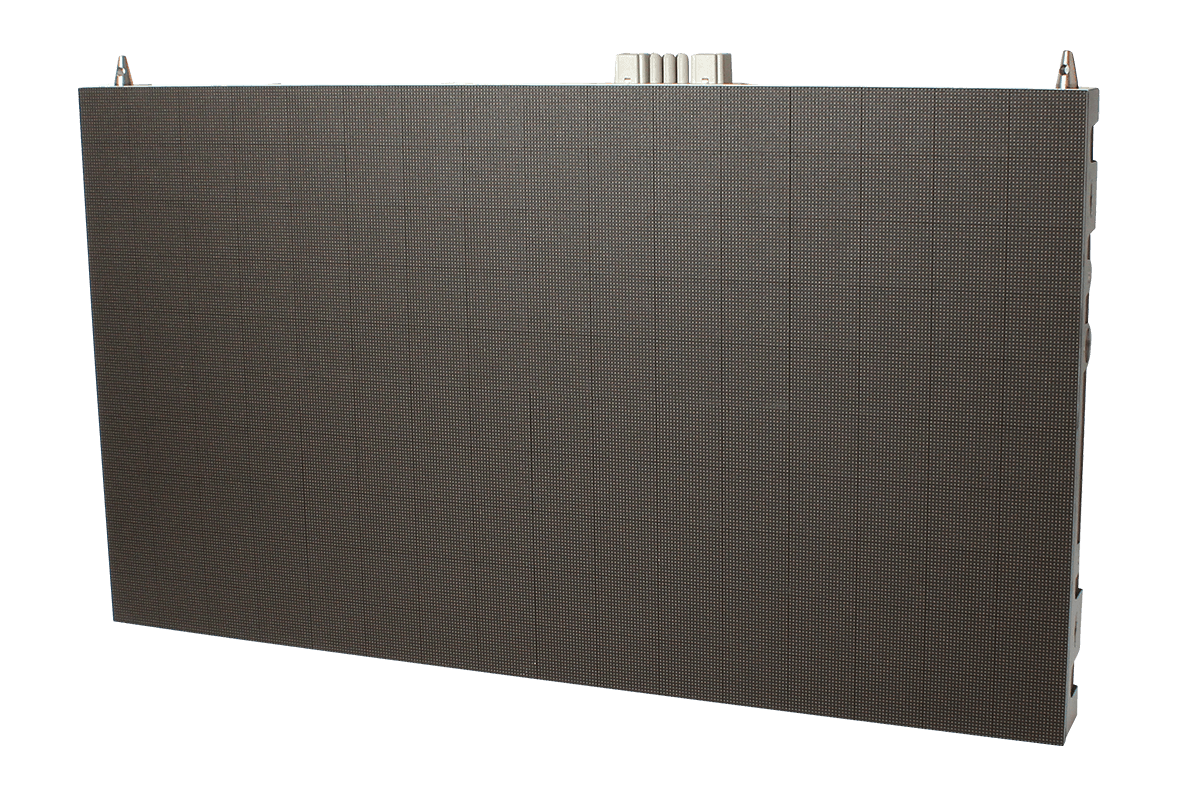

- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
- Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
- Superb readability in bright light environments – high brightness levels of up to 800 cd/m², along with wide viewing angles deliver clear messages to your audience even under varying and demanding ambient conditions.

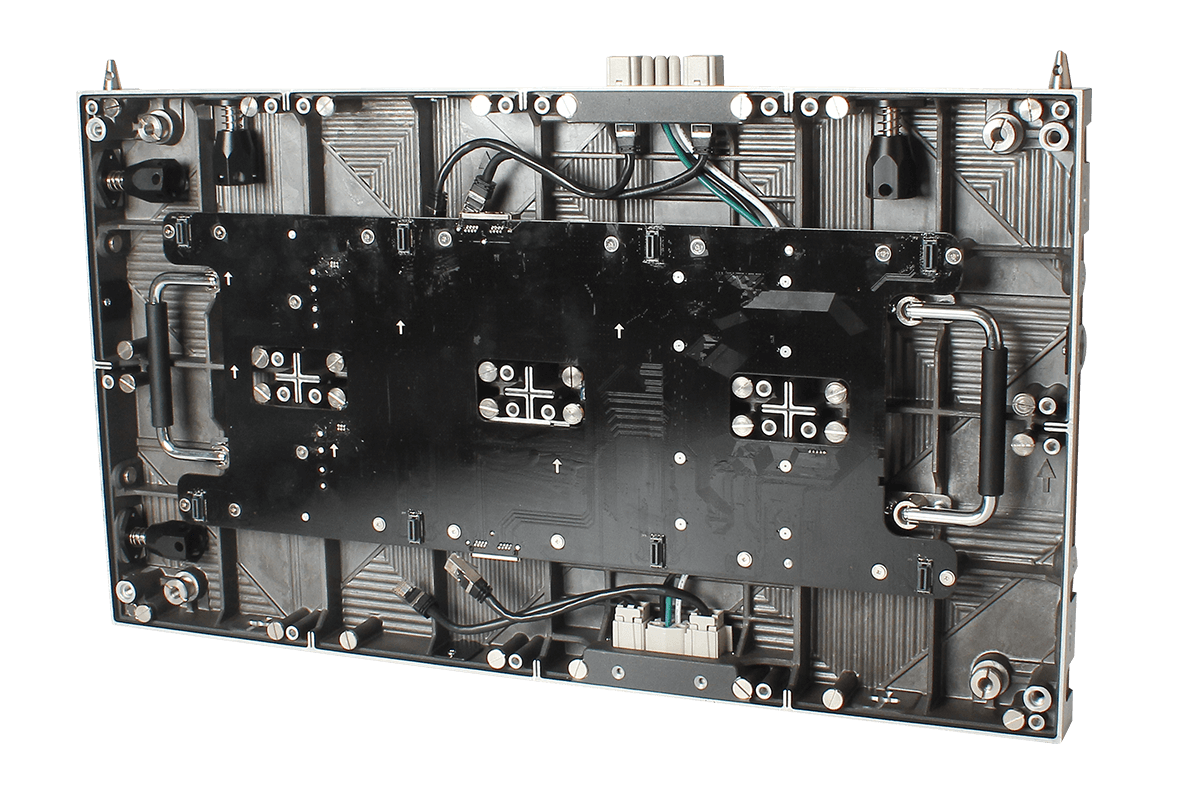

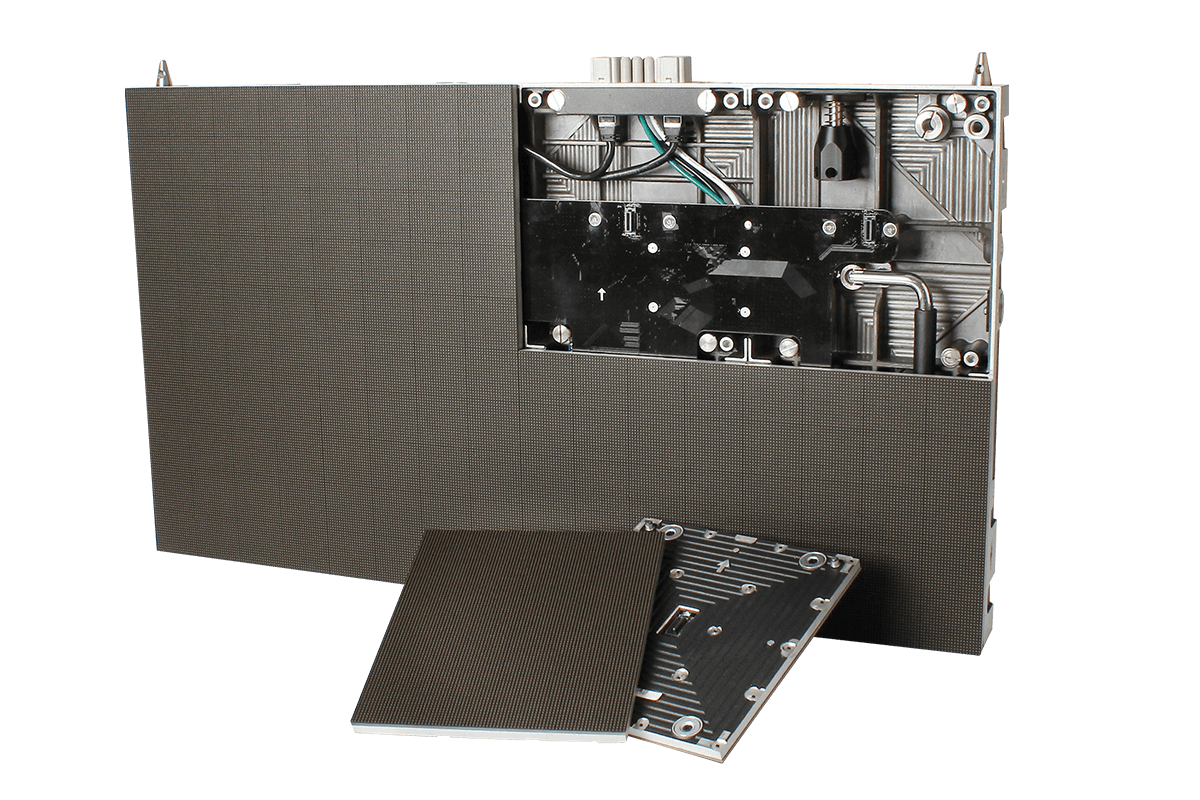

- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with no gap necessary due to minimal heat emission.
Product Information
LED-FA012i2-110
Product Documents
LED-FA012i2-110 Product Datasheet
Product Specifications
MODEL | LED-FA012i2-110 |
Product Group | Indoor LED 1.266 mm 110" FullHD Bundle |
Order Code | LED-FA012i2-110 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1010) |
Screen Size [inch/cm] | 110 / 279 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 1.266 |
Brightness (max.) [cd/m²] | 800 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 5000:1 |
Viewing Angle [°] | 170 horizontal / 170 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/27 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1920 x 1080 |
Resolution per m² | 623269 |
Number of Pixel per module [dot] | 480 x 270 |
Number of Pixel per card [dot] | 120 x 135 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 912 typ. / 2000 max. |
Power Consumption typ. [W] | 275 per m² (normal use) |
Power Consumption max. [W] | 625 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 2,432 x 1,488 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 182 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA012i2-220
Product Documents
LED-FA012i2-220 Product Datasheet
Product Specifications
MODEL | LED-FA012i2-220 |
Product Group | Indoor LED 1.266 mm 220" UHD Bundle |
Order Code | LED-FA012i2-220 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1010) |
Screen Size [inch/cm] | 220 / 559 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 1.266 |
Brightness (max.) [cd/m²] | 800 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 5000:1 |
Viewing Angle [°] | 170 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/27 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 3840 x 2160 |
Resolution per m² | 623269 |
Number of Pixel per module [dot] | 480 x 270 |
Number of Pixel per card [dot] | 120 x 135 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 3650 typ. / 8000 max. |
Power Consumption typ. [W] | 285 per m² (normal use) |
Power Consumption max. [W] | 625 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 4,864 x 2,856 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 660 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA015i2-137
Product Documents
LED-FA015i2-137 Product Datasheet
Product Specifications
MODEL | LED-FA015i2-137 |
Product Group | Indoor LED 1.583 mm 137" FullHD Bundle |
Order Code | LED-FA015i2-137 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1010) |
Screen Size [inch/cm] | 137 / 348 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 1.583 |
Brightness (max.) [cd/m²] | 800 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 5000:1 |
Viewing Angle [°] | 170 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/27 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1920 x 1080 |
Resolution per m² | 398892 |
Number of Pixel per module [dot] | 384 x 216 |
Number of Pixel per card [dot] | 96 x 108 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 1175 typ. / 3000 max. |
Power Consumption typ. [W] | 235 per m² (normal use) |
Power Consumption max. [W] | 600 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 3,040 x 1,830 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 279 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA019i2-110
Product Documents
LED-FA019i2-110 Product Datasheet
Product Specifications
MODEL | LED-FA019i2-110 |
Product Group | 1.9 mm Indoor LED HD Bundle |
Order Code | LED-FA019i2-110 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1010) |
Screen Size [inch/cm] | 110 / 279 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 1.9 |
Brightness (max.) [cd/m²] | 800 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 5000:1 |
Viewing Angle [°] | 170 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/30 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1280 x 720 |
Resolution per m² | 277008 |
Number of Pixel per module [dot] | 320 x 180 |
Number of Pixel per card [dot] | 80 x 90 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 912 typ. / 2000 max. |
Power Consumption typ. [W] | 285 per m² (normal use) |
Power Consumption max. [W] | 600 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 2,432 x 1,488 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 182 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA019i2-165
Product Documents
LED-FA019i2-165 Product Datasheet
Product Specifications
MODEL | LED-FA019i2-165 |
Product Group | Indoor LED 1.9 mm 165" FullHD Bundle |
Order Code | LED-FA019i2-165 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1010) |
Screen Size [inch/cm] | 165 / 419 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 1.9 |
Brightness (max.) [cd/m²] | 800 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 5000:1 |
Viewing Angle [°] | 170 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/30 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1920 x 1080 |
Resolution per m² | 277008 |
Number of Pixel per module [dot] | 320 x 180 |
Number of Pixel per card [dot] | 80 x 90 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 1692 typ. / 4320 max. |
Power Consumption typ. [W] | 235 per m² (normal use) |
Power Consumption max. [W] | 600 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 3,648 x 2,172 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 390 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA025i2-220
Product Documents
LED-FA025i2-220 Product Datasheet
Product Specifications
MODEL | LED-FA025i2-220 |
Product Group | Indoor LED 2.533 mm 220" FullHD Bundle |
Order Code | LED-FA025i2-220 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1415) |
Screen Size [inch/cm] | 220 / 559 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 2.533 |
Brightness (max.) [cd/m²] | 1200 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 7000:1 |
Viewing Angle [°] | 160 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/27 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1920 x 1080 |
Resolution per m² | 155817 |
Number of Pixel per module [dot] | 240 x 135 |
Number of Pixel per card [dot] | 60 x 135 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 3008 typ. / 7680 max. |
Power Consumption typ. [W] | 235 per m² (normal use) |
Power Consumption max. [W] | 600 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 4,864 x 2,856 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 660 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
LED-FA038i2-220
Product Documents
LED-FA038i2-220 Product Datasheet
Product Specifications
MODEL | LED-FA038i2-220 |
Product Group | Indoor LED 3.8 mm 220" FullHD Bundle |
Order Code | LED-FA038i2-220 |
Display | |
Pixel Configuration | 3-in-1 SMD (Black) |
LED type | SMD (1515) |
Screen Size [inch/cm] | 220 / 559 |
Aspect Ratio | 16:9 |
Pixel Pitch [mm] | 3.8 |
Brightness (max.) [cd/m²] | 1200 |
Lifetime | 100000 hrs (50% brightness) |
Contrast Ratio (typ.) | 7000:1 |
Viewing Angle [°] | 160 horizontal / 160 vertical |
Dimming Capability | 256 levels |
Colour Processing | 16 bit |
Colours | 281 trillion |
LED Driving Method | 1/15 dynamic scan |
Frame Rate | 50/60 Hz |
Refresh Rate [Hz] | < 2880 |
Colour Temperature [K] | 3000 - 9500 |
Screen Resolution | |
Resolution | 1280 x 720 |
Resolution per m² | 69252 |
Number of Pixel per module [dot] | 160 x 90 |
Number of Pixel per card [dot] | 40 x 45 |
Connectivity | |
Input Video Digital | 1 x 3G SDI; 1 x DVI-D; 1 x HDMI |
Input Control | 1 x GenLock; 1 x LAN |
Electrical | |
Total Power Consumption [W] | 3008 typ. / 7680 max. |
Power Consumption typ. [W] | 235 per m² (normal use) |
Power Consumption max. [W] | 600 per m² |
Environmental Conditions | |
Operating Temperature [°C] | -20 to 40 |
Operating Humidity [%] | 10 to 80 |
Mechanical | |
Dimensions (W x H x D) [mm] | 4,864 x 2,856 x 81 |
Dimensions (W x H x D) [mm] per module | 608 x 342 x 50 |
Weight [kg] | 660 |
Additional Features | |
Shipping Content | 2x LED Controller; LED Modules [64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (8x8) |
Manufacturer | NEC |
Serviceability | Front Service |
IP Level | IP20 |
Certifications | CCC; CE; ETL; FCC Class A; RoHS; RCM |
Warranty | 5 years conditional warranty |
