A new class of silent projection
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
- No lamp replacement – up to 20,000 hours maintenance free operation possible due to Laser Light Source.
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
|NEC Professional Advanced Laser Projector PA1004UL - Datasheet||286.82 KB|
|NEC Professional Advanced Laser Projector PA1004UL-PA804UL - User Manual||983.81 KB|
|NEC Professional Advanced Laser Projector PA1004UL - External Control Manual||7,278.38 KB|
|Projection Technology||3LCD Technology
|Contrast Ratio (typ.)||3,000,000:1
|Brightness (Boost Mode)||10000 ANSI Lumen
|Light Source Life [hrs]||20000|
|Lens||4 motorized lens options; 5 manual lens options|
|Lense Adjustment||Motorized and manual (depending on lens)|
|Lens shift||H:±20, V:+10,-50|
|Keystone correction||+/- 40° manual horizontal / +/- 40° manual vertical|
|Projection Factor||depending on lens selection (std. option NP41ZL at 1.3-3.02:1)|
|Projection Distance [m]||0.7 – 50.9|
|Screen Size (diagonal) [cm] / [inch]||Maximum: 1,270 / 500"; Minimum: 101.6 / 40"|
|Zoom||Motorized and manual (depending on lens)|
|Focus Adjustment||Motorized and manual (depending on lens)
|Frequency||Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz|

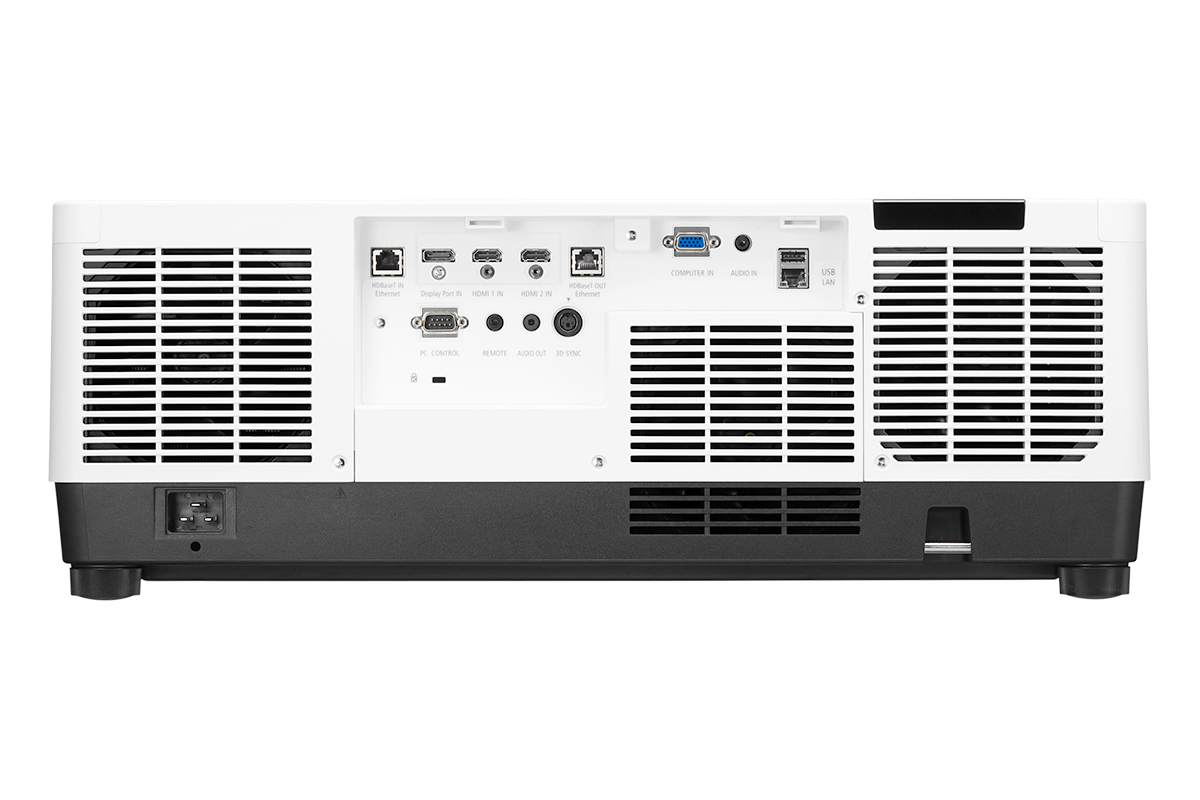

|RGB (analog) Input||1 x Mini D-sub 15-pin, compatible to component (YPbPr)|
|Digital Input||1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2|
|Digital Output||1 x HDBaseT supporting HDCP 2.2|
|Audio Input||1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support|
|Audio Output||1 x 3.5 mm Stereo Mini Jack (variable)|
|Control Input||1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet|
|LAN||1 x RJ45|
|USB||1 x Type A (USB 2.0 high speed)|
|3D Sync Output||1 x Mini DIN 3pin|
|Remote Control||Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control|
|Power Supply||100-240 V AC
|Power Consumption [W]||700-800
0.8 (Network Stand-by) / 0.28 (Stand-by)
|Dimensions (W) [mm]||599|
|Dimensions (H) [mm]||208|
|Dimensions (D) [mm]||490|
|Fan Noise [dB (A)]||32 / 35 (Eco / Normal)|
|Operating Temperature [°C]||+0 to +40
|Operating Humidity [%]||20 to 80
|Storage Temperature [°C]||-10 to 50
|Storage Humidity [%]||20 to 80
|Safety and Ergonomics||CE
TUEV Type Approved
|Special Characteristics||3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control|
|Energy Efficiency||ECO scheduler
Intelligent Power Management
Less than 0.3W Stand-By power
Longer Light Source Life
|Ecological Materials||Downloadable manuals
100% recyclable packaging
|Ecological Standards||ErP compliant
|Projector Warranty||5 years Warranty|
|Light Source Warranty||5 years or 10000h (whatever comes first)|
|Shipping Content||Power Cable
Quick Setup Guide
IR Remote Control
Users Manual on CD-ROM
|Optional Accessories||10 optional bayonet lenses
Cable Cover (NP13CV-W, NP13CV-B)
|Lenses - motorized||NP40ZL (0.79-1.11:1)
|Lenses - manual||NP11FL (0.79:1)
