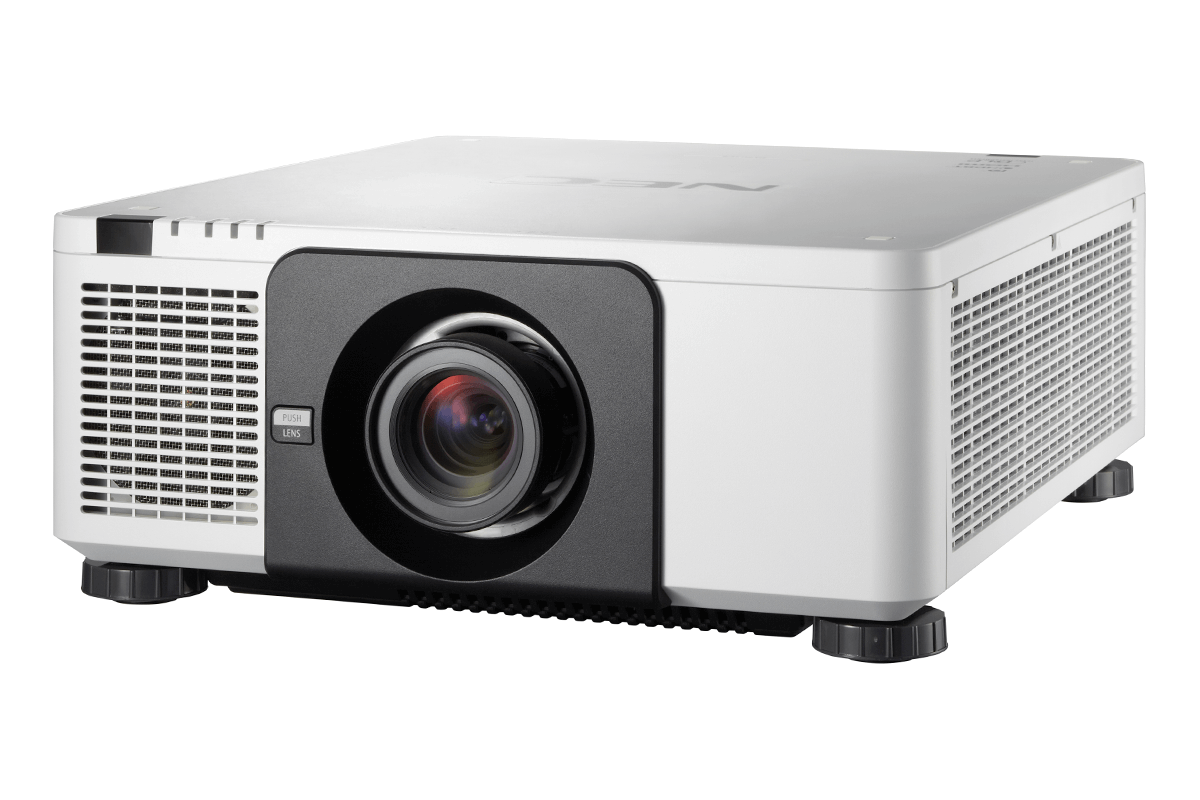

PX1004UL

PX/PH Series Professional Xtreme/High-End Fixed Installation Laser Projectors

Specifications Aspect Ratio Resolution Brightness Contrast Ratio
 PX1004UL 16:10 1920x1200 10000 10000:1

Superior cinema picture quality

First grade high end blue laser diode light source, combined with an unique quality Phosphor wheel technology and no filter replacement required, results in an up to 20,000 hours hassle free operation. These features, bundled with a low overall power consumption, provide exceptional reliability and an attractive total cost of ownership addressing long lasting Signage installations or Museums.

Superior cinema picture quality, especially on large screens is provided by 4k signal processing performance. Enhanced by an optional new ultra-short throw lens, this projector is also perfectly suited for Rental/Staging, Higher Education and large Corporate installations.

All in all a perfect custom-tailored solution, saving you valuable time and money for a secure investment into a brighter future.

Benefits

  • Resource-saving – up to 20,000 hours maintenance-free operation thanks to Laser Light Source technology, filter less dust shielded design & integrated liquid cooling system.
  • Hassle-free Installation – wide zoom bayonet lens portfolio & support of third party lenses (ask your local trusted NEC partner) enables customised installations and easy replacement of current installation projectors.
  • Outstanding Picture Quality – whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
  • Easy Way to Large Viewing – use the OPS slot for built-in players, HDMI-out signal loop-through, built-in signal splitter and edge blending capability to provide large presentation pictures.
  • Maximum Flexibility – 360 degree installation in any direction, unique geometric adjustment, Picture in Picture and 3D support offer unrivalled installation capabilities for any application.
  • Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
  • Laser Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.

User Manual - PX1004UL

Support and Warranty

NP16FL

Projector Lens

NP17ZL

Projector Lens

NP18ZL

Projector Lens

NP19ZL

Projector Lens

NP20ZL

Projector Lens

NP21ZL

Projector Lens

NP31ZL

Projector Lens

NP39ML

Projector Lens

OPS Slot-in PCs

Specifications

Projection Technology 1-chip DLP™ Technology
Native Resolution 1920x1200
Aspect Ratio 16:10
Contrast Ratio (typ.) 10000:1
Brightness [Lumen] 10000
Light Source Laser
Light Source Life [hrs] 20000
Lens 8 optional bayonet lenses
Lens shift H:±0.15, V:+0.5,-0.3
Keystone correction +/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor depending on lens selection
Projection Distance [m] 0.86 – 118
Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500"; Minimum: 100 / 40"
Zoom Motorized
Focus Adjustment Motorized
Supported Resolution 1920x1080
1920x1200
4096x2160
1280x720
2048x1080
720×576
2560x1600
720x480
Horizontal Frequency [kHz] analog: 15/24-100 kHz
digital: 15/24-153 kHz
Vertical Frequency [Hz] analog: 48-120 Hz
digital: 24-120 Hz
Connectivity
RGB (analog) Input 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital Input 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
Digital Output 1 x HDMI supporting HDCP
Video Input 1 x BNC R Share
S-Video Input 1 x BNC G/B Share
Control Input 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
Option Slot Input 1 x Slot for optional OPS modules
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed for mouse support)
3D Sync Output 1 x Mini DIN 3pin
Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Input 1 x 3.5 mm Stereo Mini Jack
Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply 100-240 V AC
50/60 Hz
Power Consumption [W] 1100-1200
Mechanical
Dimensions (W) [mm] 500
Dimensions (H) [mm] 211
Dimensions (D) [mm] 577
Weight [kg] 25-30
Fan Noise [dB (A)] 39 / 42 (Eco / Normal)
Colour Versions White
Black
Environmental Conditions
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 0 to 80
Storage Temperature [°C] -10 to +60
Storage Humidity [%] 0 to 90
Ergonomics
Safety and Ergonomics CE
ErP
RoHS
TUEV Type Approved
Additional Features
Special Characteristics 3D ready; 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; LAN; Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
Green Features
Energy Efficiency Laser Light Source
Ecological Materials Downloadable manuals
100% recyclable packaging
Ecological Standards ErP compliant
Warranty
Projector Warranty 5 years Warranty
Light Source Warranty 5 years or 10000h (whatever comes first)
Shipping Content
Shipping Content Power Cable
Projector
Quick Setup Guide
Utility Software
IR Remote Control
Network Set-up Guide
Users Manual on CD-ROM
Optional Accessories
Lenses NP16FL (0.76:1)
NP17ZL (1.25-1.79:1)
NP18ZL (1.73-2.27:1)
NP19ZL (2.22-3.67:1)
NP20ZL (3.6-5.4:1)
NP21ZL (5.3-8.3:1)
NP31ZL (0.75-0.93:1)
NP39ML (0.38:1)
