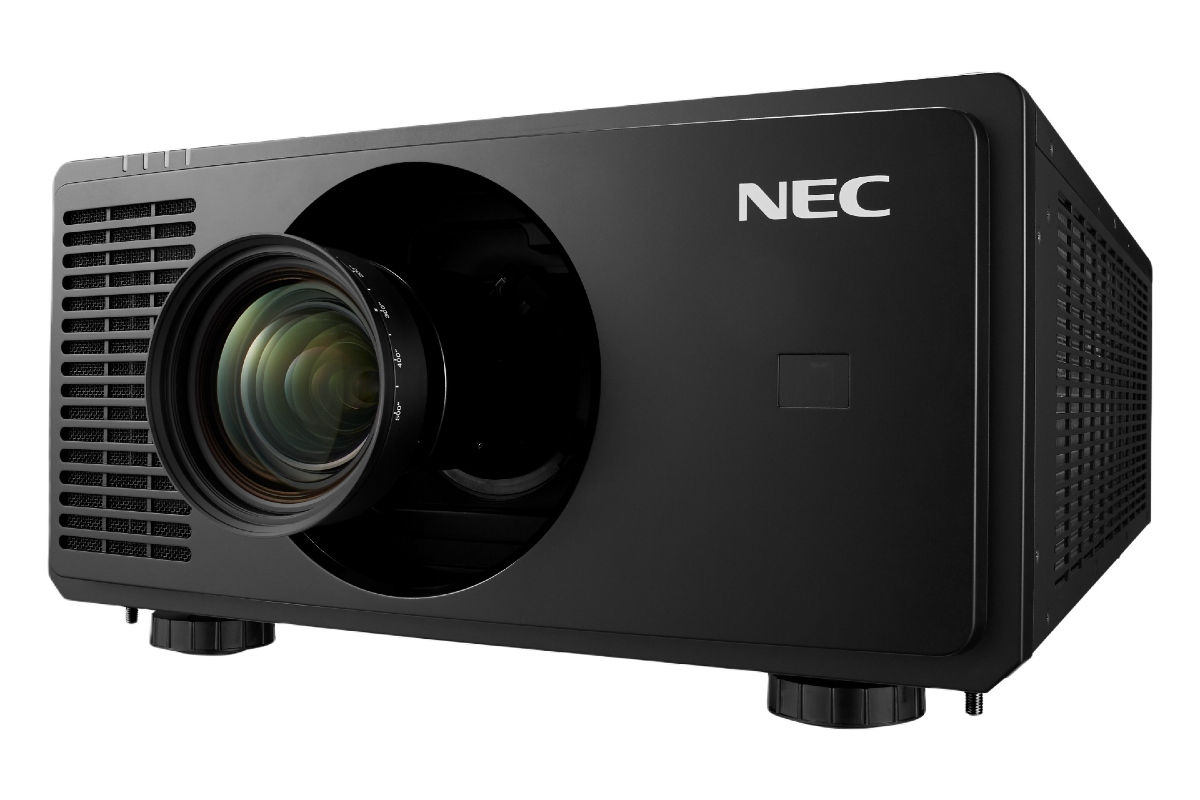

PX2201UL

PX/PH Series Professional Xtreme/High-End Fixed Installation Laser Projectors

Specifications Aspect Ratio Resolution Brightness Contrast Ratio
 PX2201UL 16:10 1920x1200 21500 (Center)  10000:1

Advanced performance in compact form

Compact and easily transportable, and yet this large venue projector is packed with advanced technological features. The PX2201UL offers a truly impressive price/ performance ratio delivering superb, richly intense colour through RB laser technology, almost equal in performance to a 3DLP projector. The ultra-bright 20,500 lumen projection can be multiplied using wide interface selection and Edge Blending technology supporting two or more projectors for wider, larger, even brighter images, whilst geometric correction eliminates distortion.

The filter-free optical system protects against dust ingress for performance longevity and minimal maintenance, just as remote adjustment capability means there is no requirement to physically access the projector once its installed. With a low noise level, flexible installation features, SDI interface and 3D support, this innovative projector perfectly services the visualisation needs of higher education and the leisure industry, especially in museums and for mapping.

Benefits

  • Superb imaging quality – the RB laser technology uses red lasers, increasing the colour gamut to produce more vivid images, unprecedented for single chip DLP projectors, with high light levels supported by a special Brightness Boost Mode.
  • Maintenance-free performance – the filter-free laser projector uses a special NEC phosphor wheel requiring minimal attention during its lifetime beyond its initial setup.
  • Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
  • Easy handling – its light weight construction (51kg) and robust design means this model is semi-portable making it suitable for flexible applications.

User Manual - PX2201UL

Support and Warranty

Specifications

Projection Technology DLP Technology
Native Resolution 1920x1200
Aspect Ratio 16:10
Contrast Ratio (typ.) 10000:1
Brightness [Lumen] 20500
Light Source Laser
Light Source Life [hrs] 20000
Lens shift H:-15,+15, V:-50,+50
Keystone correction +/- 60° manual horizontal / +/- 40° manual vertical
Projection Factor depending on lens selection
Projection Distance [m] 0.81 – 84
Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500"; Minimum: 100 / 40"
Zoom Motorized
Focus Adjustment Motorized
Supported Resolution 1920x1080
640x480
1280x720
704×576
720×576
2560x1600
Connectivity
RGB (analog) Input 1 x 5BNC; 1 x Mini D-sub 15 pin
RGB (analog) Output 1 x Mini D-sub 15 pin
Digital Input 1 x 3G-SDI; 1 x DisplayPort supporting HDCP; 1 x DVI-D; 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Digital Output 1 x 3G-SDI
Control Input 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
3D Sync Output 1 x BNC IN; 1 x BNC OUT
Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Input 1 x 3.5 mm Stereo Mini Jack
Remote Output 2 x 3.5 mm Stereo Mini Jack for Screen Trigger
Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply 50/60 Hz
200-240 V AC
Power Consumption [W] 1700-1800
Mechanical
Dimensions (W) [mm] 530
Dimensions (H) [mm] 248
Dimensions (D) [mm] 745
Weight [kg] 50-55
Fan Noise [dB (A)] 46 / 48 (Eco / Normal)
Colour Versions Black
Environmental Conditions
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 0 to 80
Ergonomics
Safety and Ergonomics CE
EAC
ErP
RoHS
Additional Features
Special Characteristics 3D ready; DICOM simulation; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; LAN; Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; PJ LINK; Portrait Setting; RS-232 Control
Green Features
Energy Efficiency Laser Light Source
Ecological Materials Downloadable manuals
ECO packaging
Ecological Standards ErP compliant
Warranty
Projector Warranty 5 years Warranty
Light Source Warranty 5 years or 10000h (whatever comes first)
Shipping Content
Shipping Content Power Cable
Remote Control
User Manual
Projector
Quick Setup Guide
Optional Accessories
Lenses NP45ZL (0.9-1.2:1)
NP46ZL (1.2-1.56:1)
NP47ZL (1.5-2:1)
NP48ZL (2-4:1)
NP49ZL (4-7:1)
