Model Pixel Pitch Resolution per m² Pixel per module
PRO-N-VESA-1.2 1.2 627,159 240x270
PRO-N-VESA-1.5 1.5 401,382 192x216
PRO-N-VESA-1.8 1.8 278,738 160x180
PRO-N-VESA-2.5 2.5 156,789 120x135

PRO N VESA Bundles

Model Pixel Pitch Display Size Display Resolution
PRO-N-VESA-1.2 110" 1.2 110" 1920x1080 FHD
PRO-N-VESA-1.2 220" 1.2 220" 3840x2160 UHD
PRO-N-VESA-1.5 275" 1.5 275" 3840x2160 UHD
PRO-N-VESA-1.8 110" 1.8 110" 1280x720 HD
PRO-N-VESA-1.8 165" 1.8 165" 1920x1080 FHD
PRO-N-VESA-2.5 220" 2.5 220" 1920x1080 FHD

LED Wall Configurator

High Resolution VESA mount brilliance

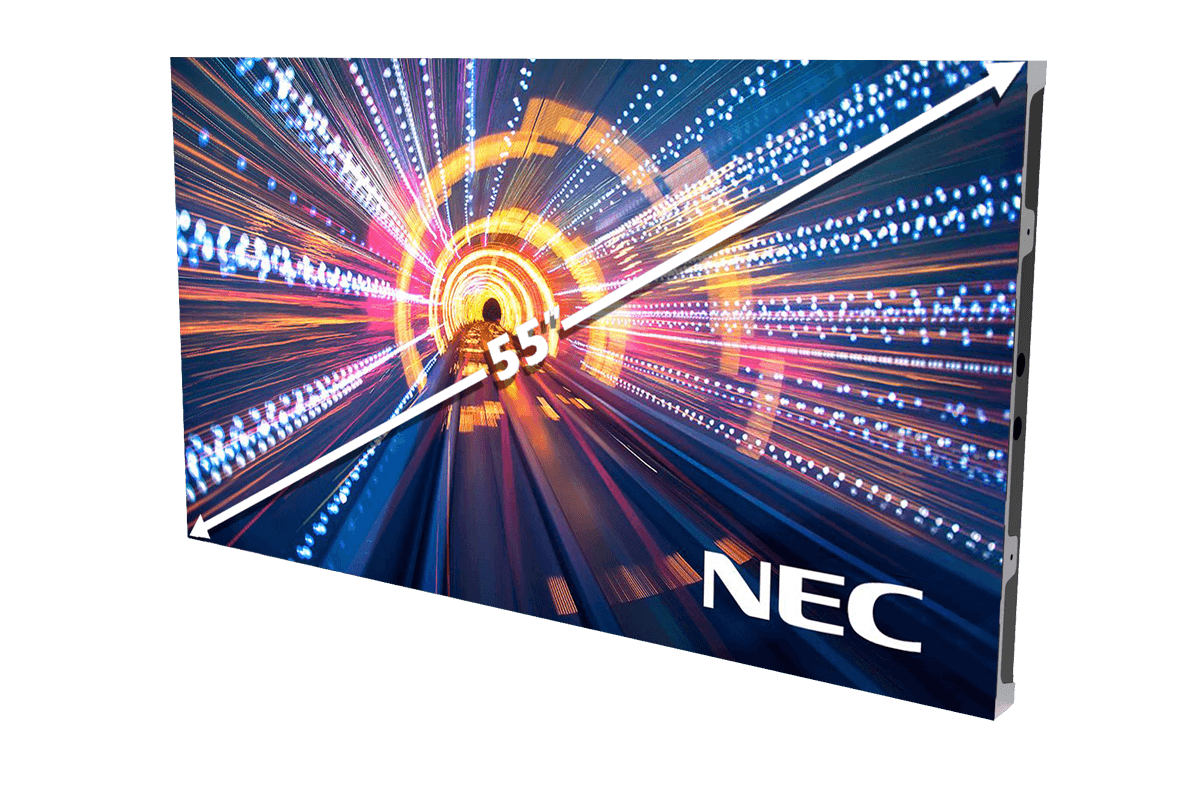

For bezel-free viewing experiences using vivid LED technology, NEC’s LED Solution delivers essential visualization for scalable large digital surfaces. Even for cost-conscious deployments for presentation and signage, NEC’s LED provides long lasting NEC quality with industrial-grade power supplies in easy to install.

NEC’s innovative VESA mount compatible PRO-N SMD series generates crisp, clear viewing without fading or distortion in any ambient light, whether it’s day or night, bright or dark.

Either free standing or for seamless integration into interiors, the slim design is sleek and chic as befits the latest innovationin digital content delivery. Benefit from excellent viewing angles, consistent vibrant colours, superb brightness and long lasting performance for high impact display projects.


  • Care-free installation – VESA 400 mount compatible with bundled solutions that deliver all you need to get your LED video wall up and running.
  • Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.

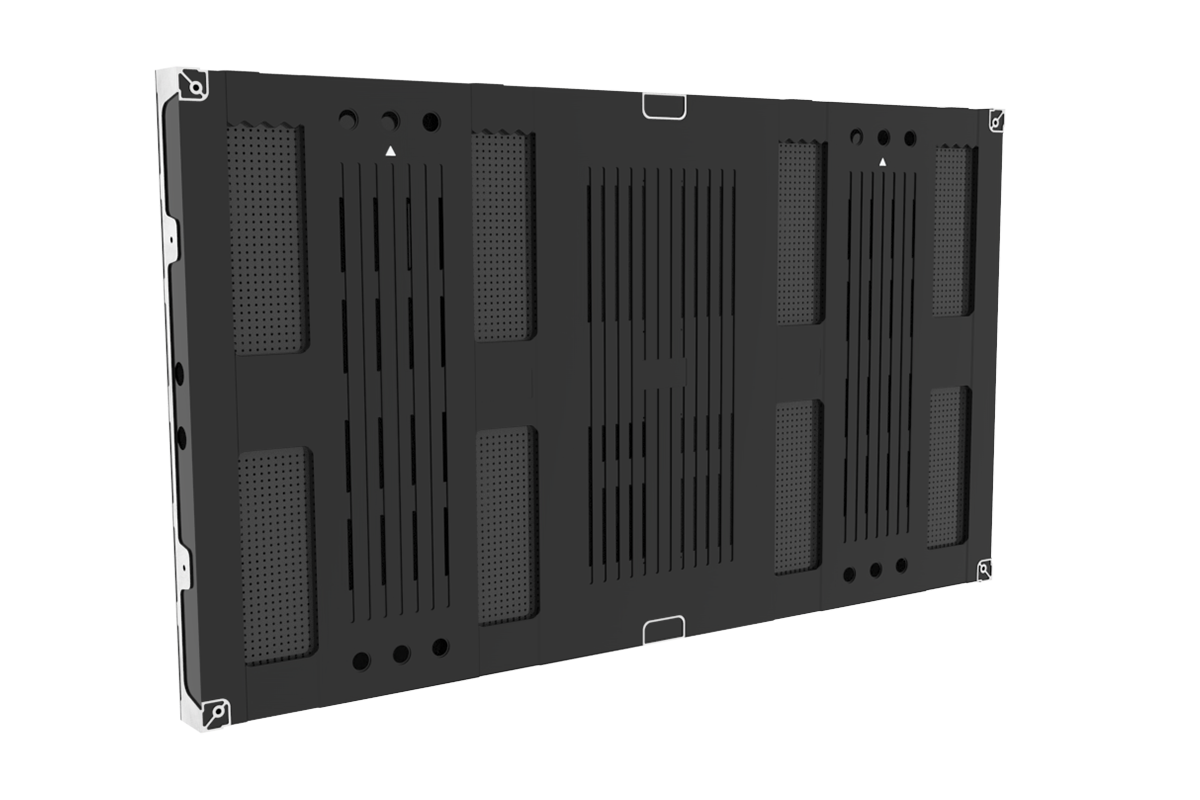

  • Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with no gap necessary due to minimal heat emission.
  • Front serviceable modules – with front access to the LED modules, maintenance is easy.
  • Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from NEC’s long lasting quality.

Datasheet - PRO N VESA 1.2  Datasheet - PRO N VESA 1.5 Datasheet - PRO N VESA 1.8 Datasheet - PRO N VESA 2.5
