Visible yet noiseless - Bringing a sense of calm to your meeting spaces
Scalable visualisation has never been so silent. With an outstandingly low noise level of just 22dB*, the P525UL is quieter than the ticking of a watch.
Thanks to the completely sealed engine, this laser projector is filter-free meaning 20,000 hours of maintenance-free operation. Comprehensive connectivity and optional WiFi provide the utmost flexibility and time saving operation. The enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box to your meeting room. The technology is future-proof with the capability of processing 4K inputs at 30Hz. Bringing the future of projection to your meeting room has never been easier, quieter and as low maintenance than with the NEC P525UL.
*in Eco mode / normal mode: 24 dB / High Bright mode: 27 dB
Benefits
- No filter service required - a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Low Noise Level - with 22dB*, the silent technology will not disturb your meeting.
- Future-proof input management - thanks to 4K@30 Hz input processing.
- Minimised Carbon Footprint - with only 320W power consumption in normal mode for lowering your TCO.
- Risk Group 2 saves you installation and operation effort - because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
Specifications
| Image | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 500000:1 |
| Brightness [Lumen] | 5000 |
| Light Source | Laser |
| Light Source Life [hrs] | 20000 |
| Lens | F= 1.5–2.1, f= 17.2–27.6 mm |
| Lens shift | H:±29, V:+60,-0 |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.23 – 2 : 1 |
| Projection Distance [m] | 0.8 – 13.5 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300"; Minimum: 76.2 / 30" |
| Zoom | Manual; x1.6 |
| Focus Adjustment | Manual |
| Supported Resolution | 3840x2160 1920x1200 |

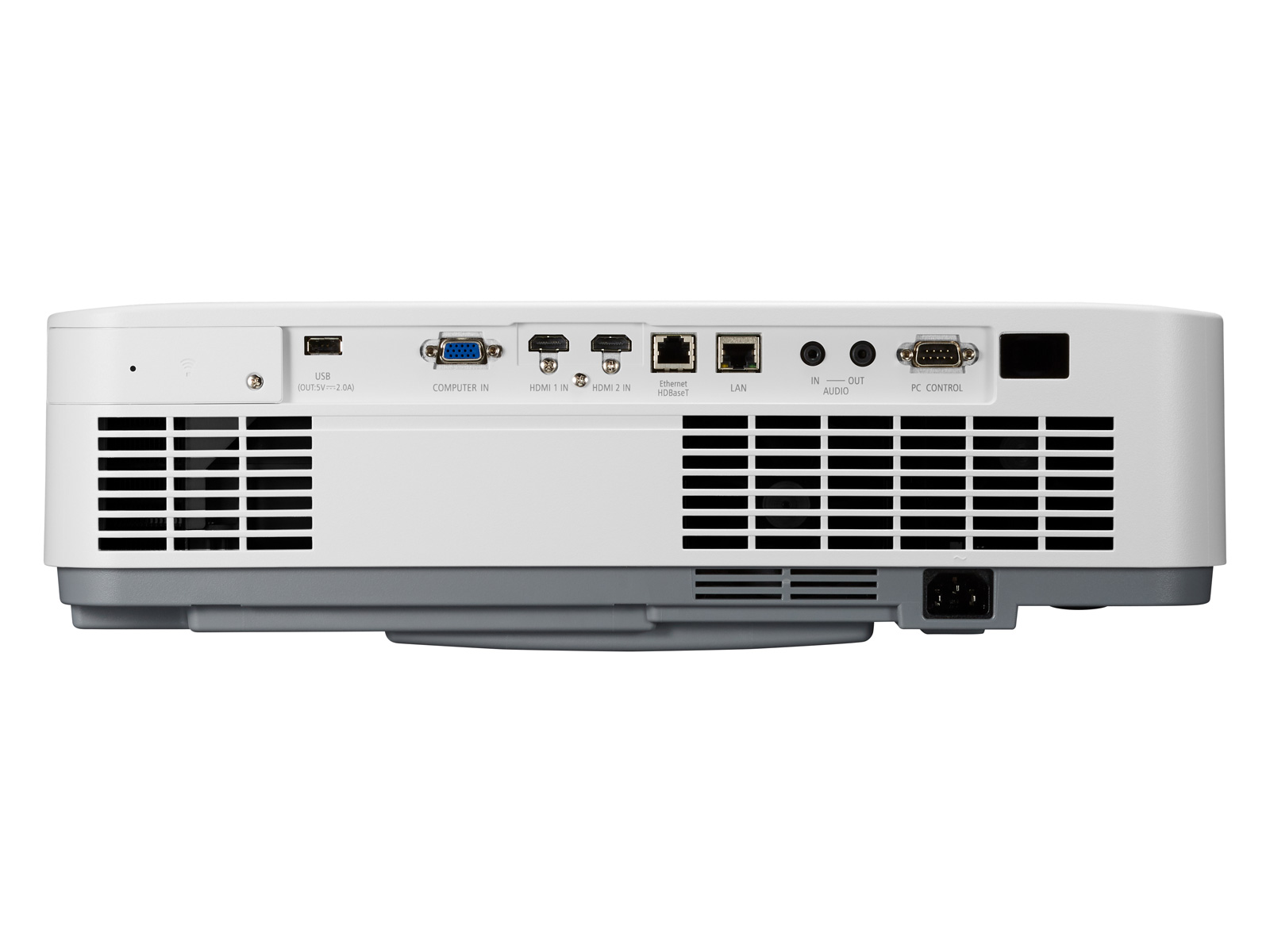

| Connectivity | |
| RGB (analog) Input | 1 x Mini D-sub 15 pin |
| Digital Input | 1 x HDBaseT; 2 x HDMI™ supporting HDCP |
| Audio Input | 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control Input | 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | RJ45; Optional WLAN |
| USB | 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle) |
| Video Signals | NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM |
| Remote Control | |
| Remote Control | Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select |
| Electrical | |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption [W] | 1.6 (Network Stand-by) / 0.3 (Stand-by) 320 (Normal) / 238 (Eco) |
| Mechanical | |
| Dimensions (W) [mm] | 480 |
| Dimensions (H) [mm] | 122 |
| Dimensions (D) [mm] | 407 |
| Weight [kg] | 5-10 |
| Fan Noise [dB (A)] | 22 / 24 / 27 (ECO / Normal / High Bright) |
| Colour Versions | White |
| Environmental Conditions | |
| Operating Temperature [°C] | 5 to 40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
| Ergonomics | |
| Safety and Ergonomics | CE EAC ErP RoHS TUEV Type Approved |
| Speakers [W] | 1 x 20 (mono) |
| Additional Features | |
| Special Characteristics | Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Plug&Play W-LAN Option; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer; Virtual Remote for direct PC control |
| Green Features | |
| Ecological Materials | Downloadable manuals ECO packaging |
| Ecological Standards | ErP compliant RoHs compliant |
| Warranty | |
| Projector Warranty | 5 years conditional warranty |
| Light Source Warranty | 5 years or 10,000 hours (whatever comes first) |
| Shipping Content | |
| Shipping Content | Power Cable User Manual 2x AAA Batteries Projector Quick Setup Guide Security Sticker Utility Software IR Remote Control Mini D-SUB Signal Cable (1.8 m) |
| Optional Accessories | |
| Optional Accessories | Wireless LAN module (NP05LM4) |
