High brightness in compact format

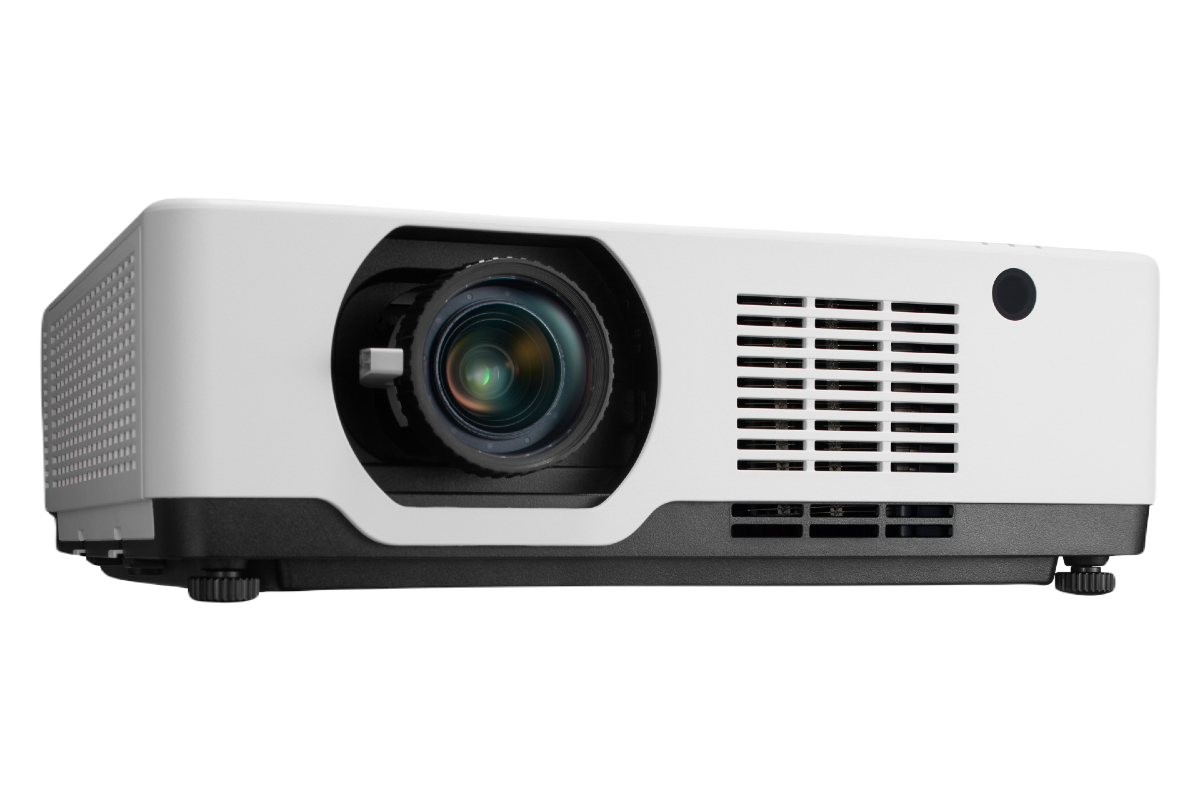

With a long life cycle, the PE506ULG brings an exceptionally low cost of ownership for cost-conscious users requiring professional and reliable projection performance. Lighter in weight and more compact compared to its predecessor, yet this powerful projector generates a higher brightness level at 5,200 ANSI lumen and the vivid brilliance of 3 LCD technology.
With wireless presentation and screen sharing capability, versatile adjustability, and compatibility with leading control systems, the PE506ULG is feature packed for classrooms, training rooms and meeting rooms.
Benefits
- Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
- Enjoy a Lower TCO – highest reliability, maintenance free operation, low power consumption and up to 20000 hours life; the Laser light source results in a significantly lower total cost of ownership.
- Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
- Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
Product Documents
| File | Type | Size |
|---|---|---|
| NEC PE506ULG Datasheet AU | 4,844.07 KB | |
| NEC PE506UL User Manual AU | 24,898.95 KB |
Product Options
Specifications
| Image | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Contrast Ratio (typ.) | 3,000,000:1 |
| Brightness [Lumen] | 5200 |
| Light Source | Laser |
| Light Source Life [hrs] | 20000 |
| Lens | F:1.5~2.08 /f=17.2~27.7mm |
| Lens shift | Manual ( H = +/- 29% / V = -0%~+60%) |
| Keystone correction | +/- 30° horizontal (manual), +/- 30° vertical (manual + auto) |
| Throw Ratio | 1.22 - 1.98:1 |
| Projection Distance [m] | 0.8 to 13.5 |
| Screen Size (diagonal) [cm] / [inch] | 30 - 300 in. / 0.76 - 7.62m |
| Zoom | 1.6x; Manual |
| Focus Adjustment | Manual |
| Supported Resolution | 1920x1200 4096x2160 @30 |
| Connectivity | |
| RGB (analog) Input | 1 x VGA 15-pin D-sub |
| RGB (analog) Output | 1 x VGA 15pin D-sub |
| Digital Input | 2 x HDMI w/ HDCP (v1.4b) |
| Audio Input | 1 x 3.5 mm Stereo Mini Jack |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack |
| Control Input | 1 x RS-232 (D-Sub 9pin), IR |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (Optional Wireless LAN, Memory, 2.0A); 1 x Type B (Service) |
| Electrical | |
| Power Supply | 100-240 V AC |
| Power Consumption [W] | 352 (Normal) / 228 (Eco) 2.0 (Network Stand-by) / 0.5 (Stand-by) |
| Mechanical | |
| Dimensions (W) [mm] | 405 |
| Dimensions (H) [mm] | 137 |
| Dimensions (D) [mm] | 373 |
| Weight [kg] | 5-10 |
| Fan Noise [dB (A)] | 27 / 37 (Eco / Normal) |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Storage Temperature [°C] | -10 to 50 |
| Humidity | 20 to 88 non-condensing |
| Ergonomics | |
| Safety and Ergonomics | RCM CE ErP RoHS |
| Speakers [W] | 1 x 16 (mono) |
| Additional Features | |
| Special Characteristics | AMX Beacon; Auto Eco Mode; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; PJ LINK |
| Green Features | |
| Ecological Materials | Downloadable manuals ECO packaging 100% recyclable packaging |
| Warranty | |
| Projector Warranty | 5 years conditional warranty |
| Light Source Warranty | 5 years or 12,000 hours (whatever comes first) |
| Shipping Content | |
| Shipping Content | User Manual 2x AAA Batteries Quick Setup Guide Security Sticker Utility Software IR Remote Control Mini D-SUB Signal Cable (1.8 m) |
| Optional Accessories | |
| Optional Accessories | Wireless LAN module (NP05LM4) |
