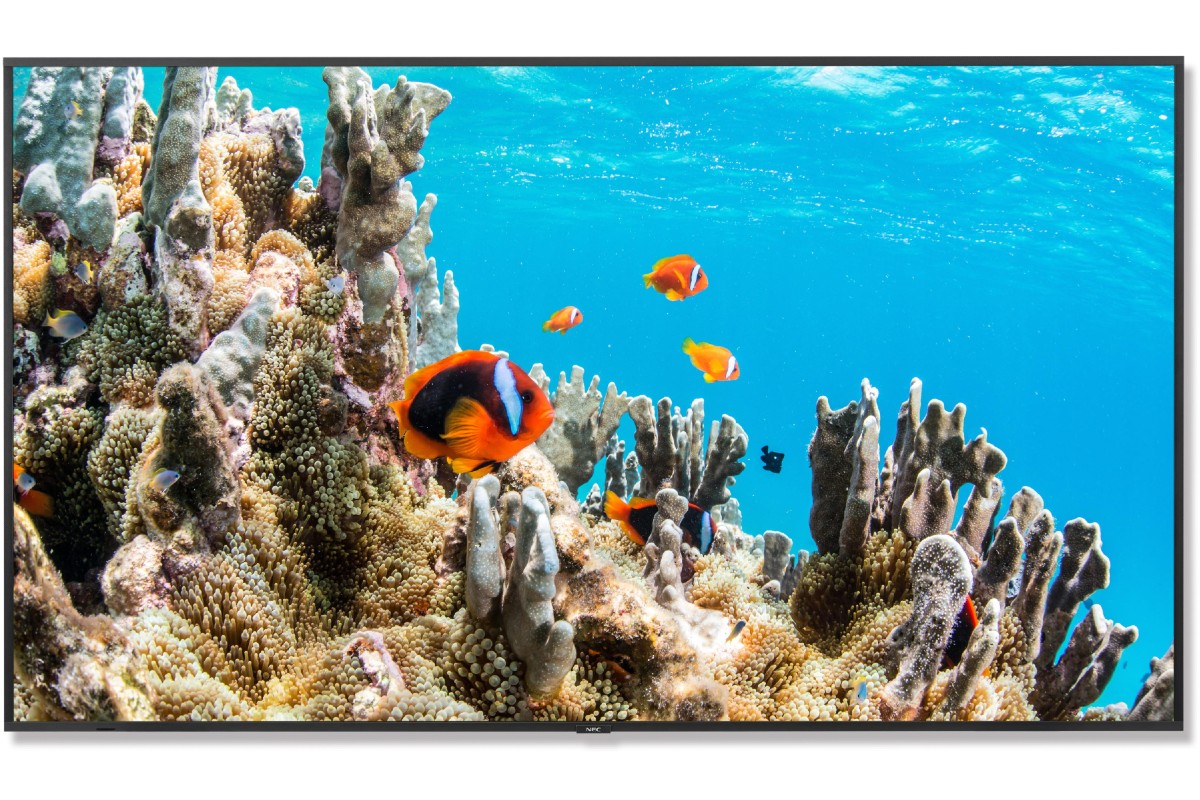

E Series 98" - E988

Essential Large Format Displays

Panel Technology  IPS with Direct LED backlights
Viewable Image Size
Orientation  Landscape/Portrait
Operating Hours  24/7
Aspect Ratio  16:9
Native Resolution  3840 x 2160
Brightness [cd/m²]  350
Contrast Ratio (typ.)  8000:1
Haze Level [%]  PRO (28)

Functionality you need for presentations and digital signage

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times.

Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the NEC E758 meets the demands of today’s meeting environments

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.

With this NEC display presenters will feel confident during meetings of up to 12 participants whilst retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.


  • Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.


Datasheet - E988

Support and Warranty


Product Specifications

Panel Technology IPS
Screen Size [inch] 98
Aspect Ratio 16:9
Brightness [cd/m²] 350
Contrast Ratio (typ.) 8000:1
Viewing Angle [°] 178
Colour Depth [bn] 1.073 (8bit + FRC)
Haze Level [%] 28
Supported Orientation Landscape
Synchronisation Rate
Horizontal Frequency [kHz] 15 - 136
Vertical Frequency [Hz] 24 - 75
Native Resolution 3840x2160
Supported Resolution 1920x1080
Input Video Analogue 1 x VGA
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3.5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit
Input Data 1 x USB 2.0 (Media Player)
1 x USB Type-C (5V/3A, power for external devices)
Output Audio Analogue 1 x 3.5mm jack
Output Audio Digital 1 x SPDIF
Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input
Ambient Light Sensor Integrated
triggered actions programmable
Power Consumption [W] 200-300
Power Savings Mode [W] < 0.5
< 2 (Networked Standby)
Power Supply 100-240 V AC
50/60 Hz
Environmental Conditions
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60
Dimensions (W) [mm] 2194.7
Dimensions (H) [mm] 1250.2
Dimensions (D) [mm] 84.3
Exact Weight [kg] 65.4
Bezel Width [mm] 15.9 (left and right); 15.9 (top and bottom)
VESA Mounting [mm] 4 holes
Material Metal
Media Player
Supported File Storage / File System USB 2.0 / FAT16
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
Green Features
Energy Efficiency LED backlight
Ecological Standards EnergyStar 8.0
Additional Features
Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
Safety and Ergonomics Energy Star 8.0
EMC Class B
Audio Integrated Speakers (10W + 10W)
Shipping Content Display
HDMI Cable
Power Cable
Remote Control
2x AAA Batteries
Setup Manual
Warranty 3 years warranty incl. backlight
Operating Hours 24/7
External Control Crestron Connected
