A new class of bright projection

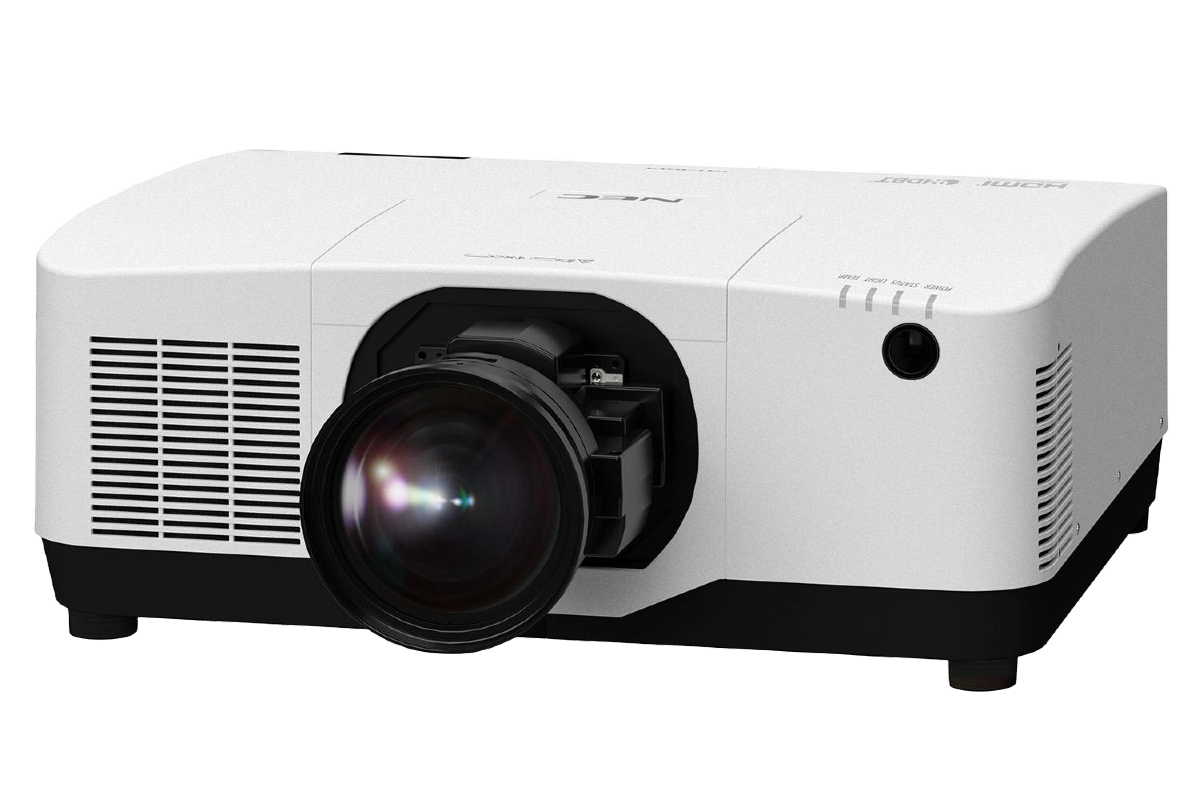

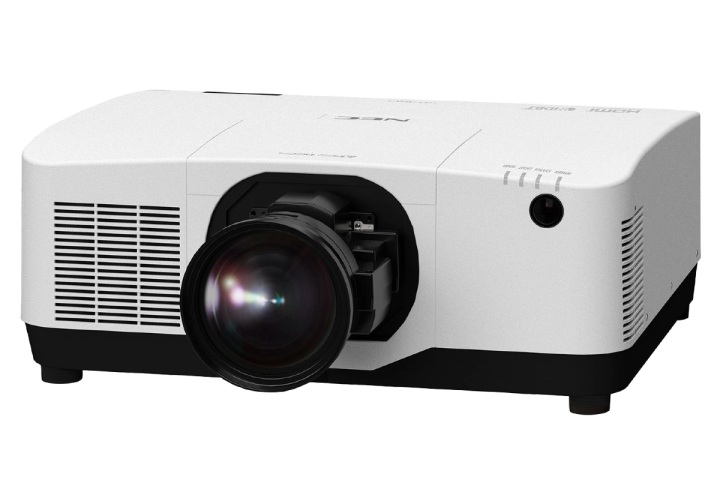

Now even larger spaces can benefit from NEC’s innovation in silent technology with the 17,000 center lumens PA1705UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress - no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
NEC customers can easily make the transition to benefit from the latest laser technology. The PA1505UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Benefits
- No lamp replacement – up to 20,000 hours maintenance free operation possible due to Laser Light Source.
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Compact Design – a large venue projector with a comparatively small footprint and light weight design.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
Product Options
Specifications
| Image | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio (typ.) | 3,000,000:1 |
| Brightness [Lumen] | 16000 |
| Light Source | Laser |
| Light Source Life [hrs] | 20000 |
| Lens | 6 motorized lens options |
| Lense Adjustment | Motorized |
| Lens shift | Up to H:±25, V:+65,-65 |
| Keystone correction | +/- 40° manual horizontal / +/- 30° manual vertical |
| Projection Factor | depending on lens selection (std. option NP54ZL at 1.25-2.01:1) |
| Projection Distance [m] | 0.68 – 80.77 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 1,270 / 500"; Minimum: 152 / 60" |
| Zoom | Motorized |
| Focus Adjustment | Motorized |
| Supported Resolution | 1920x1080 1920x1200 4096x2160 640x480 2048x1080 720×576 2560x1600 720x480 |
| Frequency | Horizontal: analog: digital: 15/24-153 kHz; Vertical: 24 – 120 Hz |

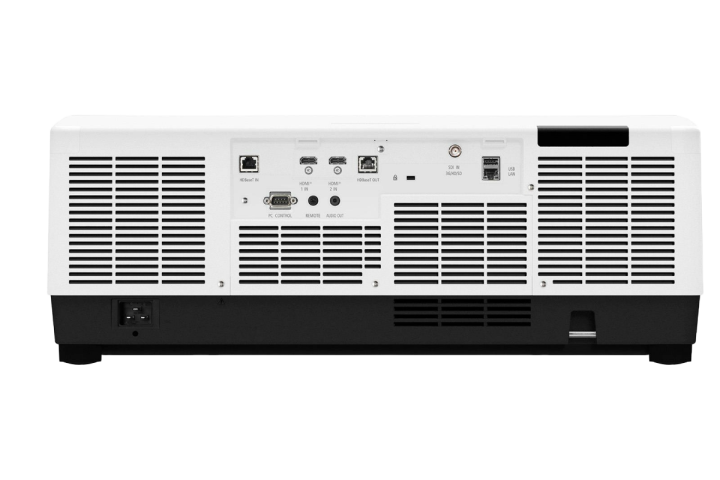

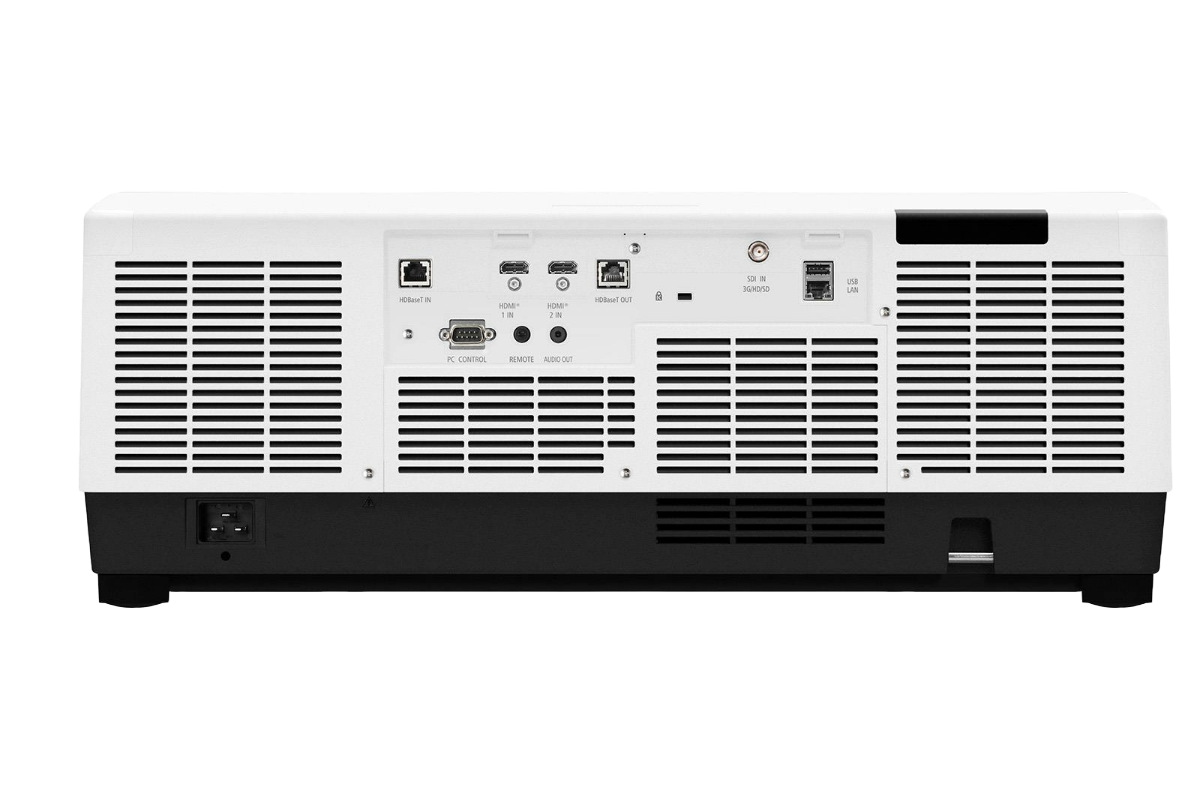

| Connectivity | |
| Digital Input | 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2 |
| Digital Output | 1 x HDBaseT supporting HDCP 2.2 |
| Audio Input | 1 x HDBaseT audio support; 2 x HDMI audio support |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control Input | 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
| Remote Control | |
| Remote Control | Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Controll |
| Electrical | |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption [W] | 613 (Normal) / 566 (Eco) 0.5 Network Stand-by / 2.0 Stand-by |
| Mechanical | |
| Dimensions (W) [mm] | 599 |
| Dimensions (H) [mm] | 238 |
| Dimensions (D) [mm] | 490 |
| Weight [kg] | 25-30 |
| Fan Noise [dB (A)] | 43 / 37 (Eco / Normal) |

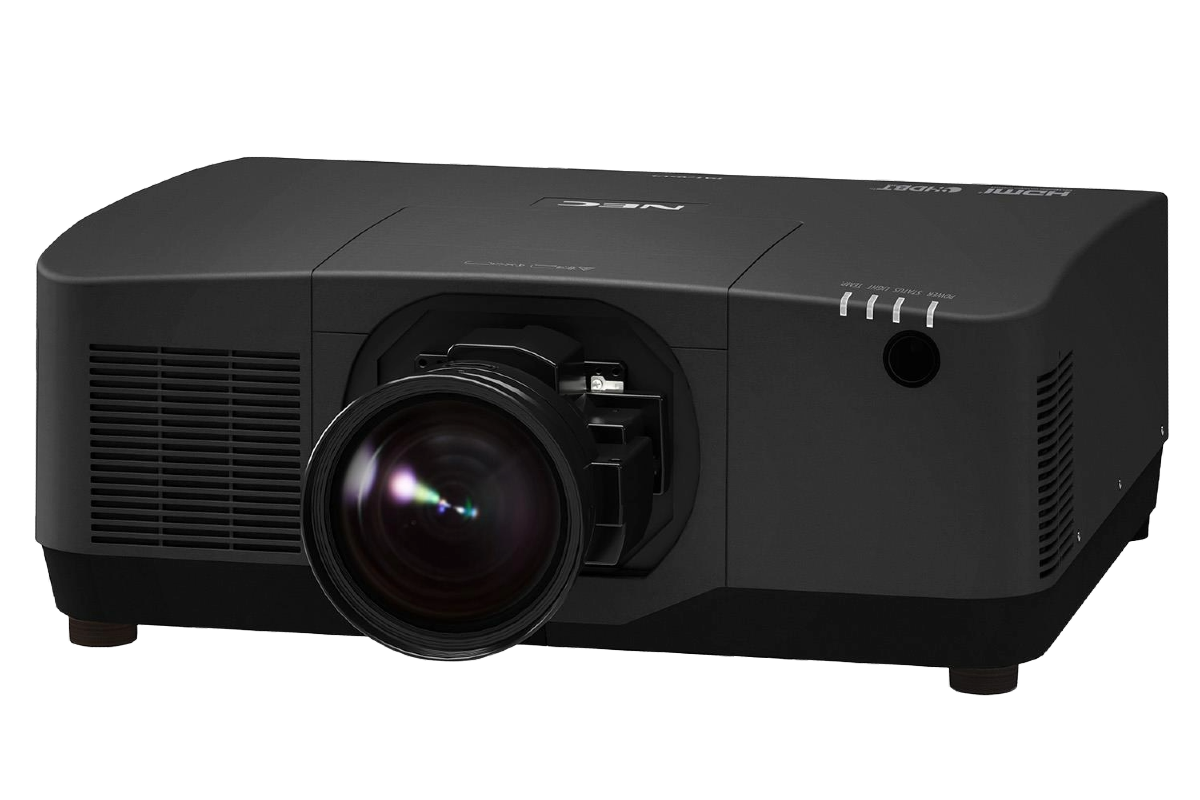

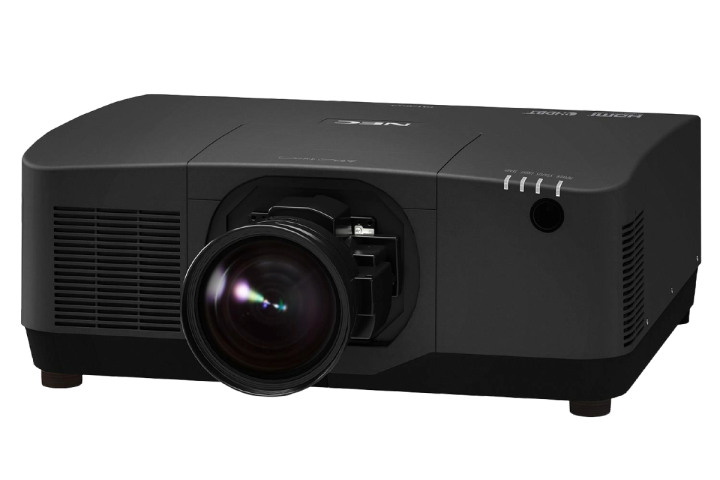

| Colour Versions | White Black |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
| Ergonomics | |
| Safety and Ergonomics | RCM CE EAC ErP RoHS TUEV Type Approved |
| Additional Features | |
| Special Characteristics | 4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max, horizontal ± +0.25 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control |
| Green Features | |
| Energy Efficiency | ECO scheduler Intelligent Power Management Longer Light Source Life Software scheduling Timer-Function Less than 0.5W Stand-By power |
| Ecological Materials | Downloadable manuals 100% recyclable packaging |
| Ecological Standards | ErP compliant |
| Warranty | |
| Projector Warranty | 5 years Warranty |
| Light Source Warranty | 5 years or 10000h (whatever comes first) |
| Shipping Content | |
| Shipping Content | Power Cable Projector Quick Setup Guide IR Remote Control Users Manual on CD-ROM |
| Optional Accessories | |
| Optional Accessories | 6 optional bayonet lenses |

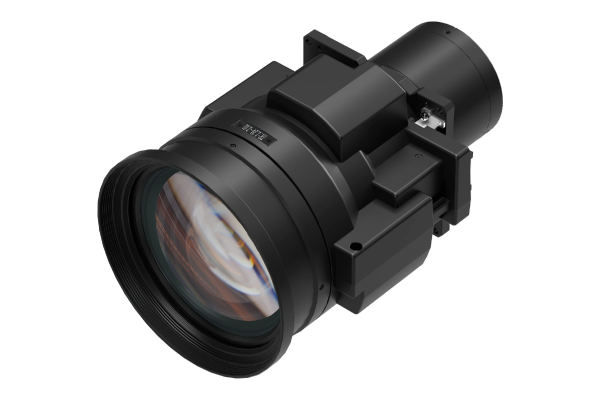

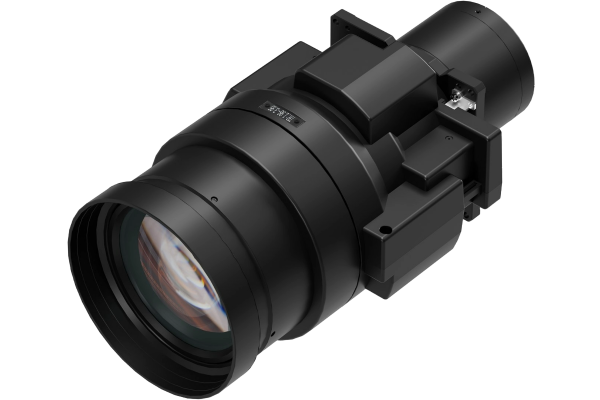

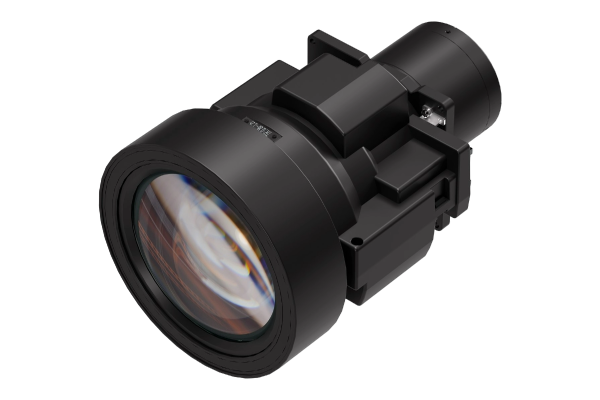

| Lenses - motorized | NP53ZL (0.86-1.25:1) NP54ZL (1.24-2.01:1) NP55ZL (1.98-3.95:1) |
