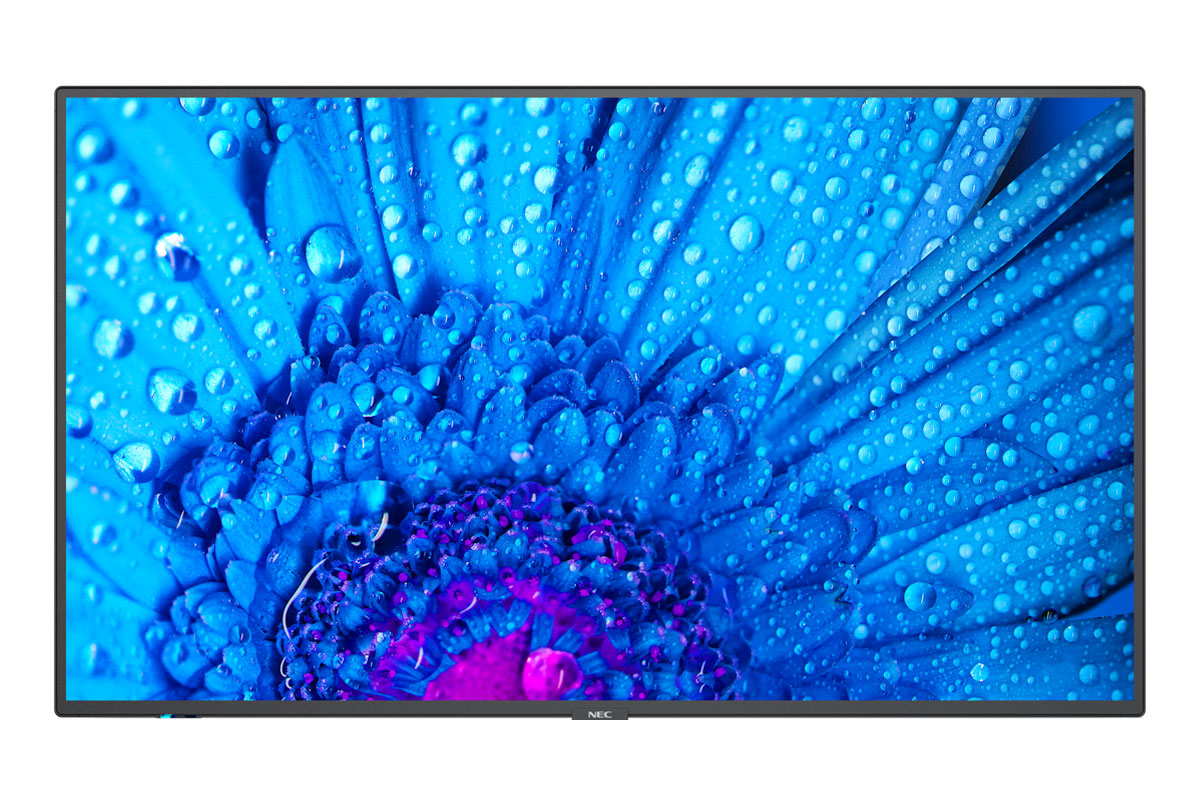

Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
- Modern and slim design - robust yet elegant allowing for an unobtrusive integration into any application and environment
- Secure remote management - control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Unhindered readability - no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Mission-critical 24/7 ready operation - the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
- Future Ready Connectivity - featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Specifications
| Display | |
| Panel Technology | IPS with Edge LED backlights |
| Screen Size [inch] | 75 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 500 |
| Contrast Ratio (typ.) | 8000:1 |
| Viewing Angle [°] | 178 |
| Colour Depth [bn] | 1.073 (8bit + FRC) |
| Colour Gamut | 72% of NTSC |
| Response Time (typ.) [ms] | 8 |
| Panel Refresh Rate | 60 |
| Haze Level [%] | 25 |
| Supported Orientation | Landscape Portrait |
| Synchronisation Rate | |
| Horizontal Frequency [kHz] | 15 - 135 |
| Vertical Frequency [Hz] | 23 - 76 |
| Resolution | |
| Native Resolution | 3840x2160 |
| Supported Resolution | 1920x1080 3840x2160 1024x768 4096x2160 1280x720 1366x768 1280x1024 1440x900 1600x1200 1650x1050 1900x1200 2560x1600 1920x2160 |
| Connectivity | |
| Input Video Digital | 2 x DisplayPort (with HDCP) 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x Display Port 2 x HDMI |
| Input Control | LAN 100Mbit Remote control wire (3.5mm jack) RS232 |
| Input Data | 1 x USB 2.0 (Downstream) 1 x USB 2.0 (Powered 5V/2A, Firmware Updates) 1 x USB 2.0 Type-B (Downstream) |
| Output Video Digital | 1 x HDMI (loop through: HDMI, SDM slot-in PC) 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC) DP (in) to HDMI (out) conversion |
| Output Audio Analogue | 1 x 3.5mm jack |
| Output Control | 1 x LAN 100Mbit |
| Input Detect | Custom First Last |
| PiP/PbP | Dual-Split Quad-Split scalable picture size |
| CALIBRATION | |
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
| Sensor Calibration (through USB) | PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) |
| Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software | NEC Display Wall Calibrator |
| Open Modular Intelligence | |
| Intel® SDM | Accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi4 Compute Module |
| Sensors | |
| Ambient Light Sensor | Integrated triggered actions programmable |
| Temperature Sensor | Integrated 3 sensors Triggered actions programmable |
| Electrical | |
| Power Consumption [W] | 200-300 |
| Power Savings Mode [W] | < 0.5 < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC 50/60 Hz Internal |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 80 |
| Storage Temperature [°C] | -20 to 60 |
| Mechanical | |
| Dimensions (W) [mm] | 1682.3 |
| Dimensions (H) [mm] | 961.1 |
| Dimensions (D) [mm] | 83.2 |
| Exact Weight [kg] | 38 |
| Bezel Width [mm] | 14.3 (left, right and top); 14.8 (bottom) |
| VESA Mounting [mm] | 4 holes 600 x 400 (FDMI) M8 |
| Packaging Dimensions (W x H x D) [mm] | 1,830 x 1,070 x 225 |
| Packaging Weight [kg] | 51.5 |
| Colour Bezel | Pantone 426M (black) |
| Material | Metal |
| Green Features | |
| Energy Efficiency | Energy efficiency class: G LED backlight Energy consumption: 145 kWh/1000 h |
| Ecological Standards | EnergyStar 8.0 |
| Additional Features | |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics | Energy Star 8.0 RCM CE EAC RoHS EMC Class B PSB VCCI |
| Pixel Failure Class | ISO 9241-307 Class 1 |
| Audio | Integrated Speakers (10W + 10W) Integrated Audio Amplifier (for optional speakers up to 2 x 15 W) |
| Shipping Content | Display HDMI Cable Power Cable Remote Control 2x AAA Batteries Setup Manual |
| Warranty | 3 years warranty incl. backlight |
| Operating Hours | 24/7 |
| External Control | AMX NetLinx Support ASCII Control Commands Crestron Connected HDMI CEC HTTP Browser PJLink Scheduled Timer SNMP |
| Remote Management | Automated Email Alerts NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons Disable IR Functionality Emergency Notification |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
